LinkIQ Kit

SKU
Brand Fluke Networks
Categories
Description Cable Tester Kit, CAT Safety Rating Not Applicable, Testing Functions Tone Generation, Adapters Included 1.25mm End Face, 2.5mm End Face, LC, RJ11, RJ45, SC, Connector Type RJ45, Maximum Speed Measured 10 GBps, Data Safe Monitor No, Display Screen Type LCD Touchscreen

Web Price

$10,446.79 / each

Qty

Product Details

Adapters Included 1.25mm End Face, 2.5mm End Face, LC, RJ11, RJ45, SC

Alert Type Digital Display

Auto Power Off Yes

Battery Chemistry Lithium Ion

Calibration Certificate Not Included

CAT Safety Rating Not Applicable

Communication Protocol Ethernet

Compatible Cable Type Twisted Pair

Connector Type RJ45

Country of Origin (subject to change) Lithuania

Data Logger Yes

Data Safe Monitor No

Digital Memory Capacity 10 GB

Display Screen Type LCD Touchscreen

Display Type Digital

Fault Location Pulse Duration Not Applicable

Features Document Work Through LinkWare(TM) PC Reporting, Ethernet Alliance PoE Certified for Reliable Multivendor Interoperability, Graphical Wiremap and Length Test to Identify Common Faults that Occur with Cabling Installation, Install and Troubleshoot PoE Devices via Switch Negotiation and PoE Load Test, Rechargeable Batteries, Supports Industrial Ethernet (Ethernet/IP, PROFINET, EtherCAT, and others), Test Connectivity to TCP/IP Network Through IP Configuration and Ping, Troubleshoot Active Networks by Providing Connected Switch Information (Switch Name, IP Address, MAC Address, Port Number, and VLAN Info), Verify Gateway and DNS Server Responsiveness and Availability

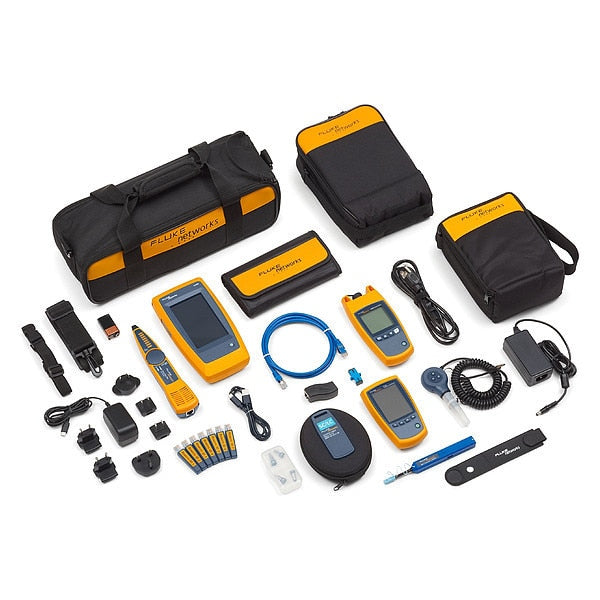

Includes (4) UPC Tips (LC Bulkhead, SC Bulkhead, 1.25mm End Face Adapters, and 2.50mm End Face Adapters), 50 micron m SC/LC Multimode Launch Fiber, AC Charger, Carrying Case, Duffle Bag Carrying Case, Fiber QuickMap Multimode Fiber Fault Locator Unit, FiberInspector Micro with Probe and Display, IntelliTone Pro 200 Probe, LinkIQ(TM) with (7) Remote IDs, Magnetic Strap Attachment, Pocket Case, Quick Clean Cleaner 1.25 mm Fiber, LC and MU, RJ45/RJ11 Universal Coupler, RJ45 Patch Cord, Screw on Interchangeable SC Adapter, Universal Power Adapter

Includes Batteries Yes

Includes Software Yes

IP Rating Not Applicable

Manufacturer Warranty Length 90 days

Maximum Cable Length 1,000 ft

Maximum Impedance Measured Not Applicable

Maximum Operating Humidity 90 %

Maximum Operating Temperature 113 Degrees F

Maximum Speed Measured 10 GBps

Minimum Cable Length Not Applicable

Minimum Operating Temperature 32 Degrees F

Number of Batteries Required 1
