Name: Test Set, TS19 w/ ABN
Brand: Fluke Networks
SKU: G0406497
Price: 294.99 USD
Availability: InStock

Home / Test Set, TS19 w/ ABN

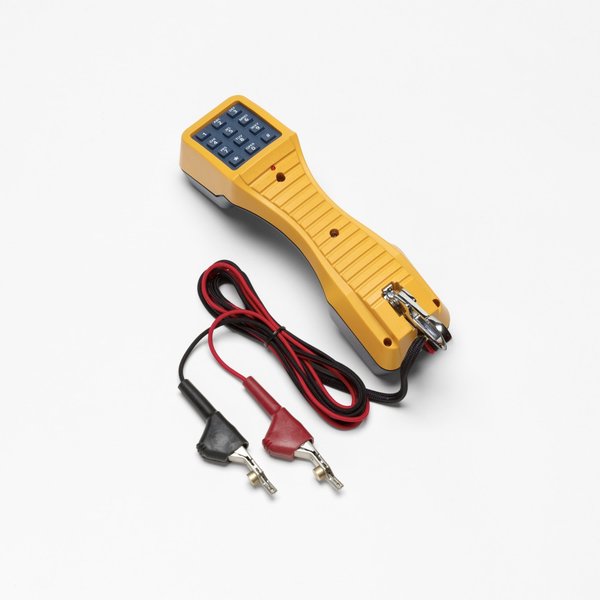

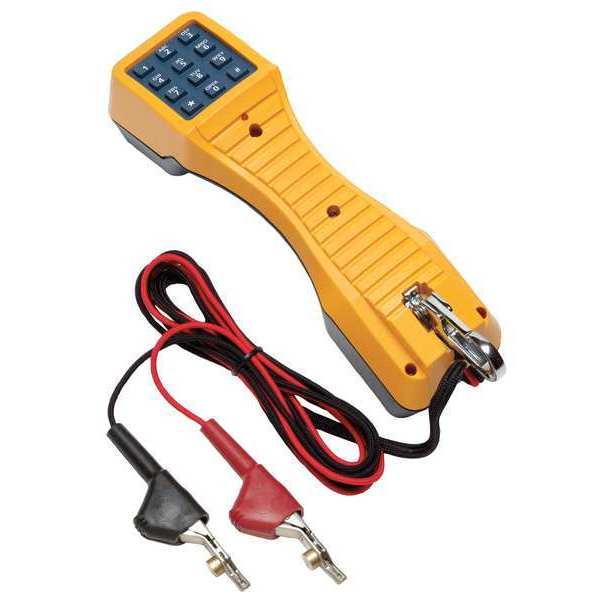

Test Set, TS19 w/ ABN

SKU
Brand Fluke Networks
Categories
Description Test Set, Adapters Included ABN, Connector Type ABN, Data Safe Monitor Yes, Dialing Method Pulse, Tone, Features Last Number Redial, Polarity Function, IP Rating Not Applicable, Number of Digits 18, Testing Functions Hi-Z Monitoring, Line Polarity Indication, Tone Generator, Maximum Operating Humidity 80 Percent, Minimum Operating Temperature 23 Degrees F

Web Price

$294.99 / each

Qty

Product Details

AC Impedance (Monitor Mode) High impedance (HI Z position) 100 kÃÂ©minimum at 1 KHz || Low impedance (Ring position) 600 ÃÂ©at 1 KHz typical

Adapters Included ABN

Altitude To 3,000 meters (10,000 feet) maximum

Application Butt in Test Set, Line Monitor, Telephone Test Set

Application/Usage Network

Certifications and Compliance CAN/CSA-C22. 2 No. 1010. 1-92 CSA-C22. 2 No. 1010. 1B-97, UL/ANSI 3111-1 || CAN/CSA-C22. 2 No. 60950-1-03

Connector Type ABN

Country of Origin (subject to change) Taiwan, Province of China

Data Safe Monitor Yes

DC Resistance (Talk Mode) 150 ÃÂ©typical at 80 mA current

Depth 8.8

Device Function Open Circuit Testing, Short Circuit Testing

Dialing Method Pulse, Tone

Drop 1 meter, 4 times

DTMF Output ÃÂ±1 % maximum

Features Last Number Redial, Polarity Function

For Use With Telephone Lines

Height 3. 375 in (8. 57 cm)

High versus Low Tone Difference 4 dB maximum

Interdigit Interval Leakage During Break > 50 kÃÂ©

IP Rating Not Applicable

Length 8. 75 in (22. 2 cm)

Line Polarity Indicator Yes

Loop Limit 2. 4 kÃÂ©maximum at 48 VDC (nominal 15 mA minimum loopcurrent)

Maximum Operating Humidity 80 %

Minimum Operating Temperature 23 Degrees F

Number of Digits 18

Package Quantity 1

Percent Break 800 ms typical

Product Name TS19 Test Set

Product Series TS19

Promotion Restriction Not eligible for promotion

Pulsing Rate 60 % ÃÂ± 2 %

Regulatory Standards Used ICES-003 Issue 3 || EMC Directive 89/336/EEC, EN 55022:98, EN 61326:97, A1:98 Annex C, EN 61000-4-2, EN 61000-4-3 || 47 CFR Part 15, Subpart B || LV Directive 73/23/EEC, EN 610010. 1 (1993) || AS/NZS 3548

Relative Humidity 10 %to 80 % (non-condensing)

Rotary Dial Output 10 pps . 5 pps

Standards 47 CFR Part 15, Subpart B, A1:98 Annex C, AS/NZS 3548, CAN/CSA-C22.2 No. 1010.1-92, CAN/CSA-C22.2 No. 60950-1-03, CSA-C22.2 No. 1010.1B-97, EMC Directive 89/336/EEC, EN 55022:98, EN 61000-4-2, EN 61000-4-3, EN 610010.1, EN 61326:97, ICES-003 Issue 3, LV Directive 73/23/EEC, UL/ANSI 3111-1

Status Indicators The LED indicates polarity. The red LED lights if the red test lead is connected to the Tip (positive) side and the black test lead is connected to the Ring (negative) side

Temperature Operating: -5 ÃÂ°C to ÃÂ°C || Storage: -40 ÃÂ°C to ÃÂ°C

Testing Functions Hi-Z Monitoring, Line Polarity Indication, Tone Generator

Tone Frequency Error Level per Tone Pair dBm maximum, - dBm minimum

Waterproof No

Width 2. 375 in (6. 03 cm)
