Name: Tone Generator, Network Infrastructure
Brand: Fluke Networks
SKU: G9797103
Price: 294.99 USD
Availability: InStock

Home / Tone Generator, Network Infrastructure

Tone Generator, Network Infrastructure

SKU
Brand Fluke Networks
Categories
Description Tone Generator, Testing Functions Continuity Testing, Tone Generation, Wire Mapping, Adapters Included Coax, Connector Type Alligator Clips, Maximum Speed Measured Not Applicable, Data Safe Monitor No, Display Screen Type LED, For Use With Single Conductor, Includes Lanyard, RJ11 Patch Cord, RJ45 Patch Cord, Wire Mapping Detections Crossed Pairs, Opens, Shorts, Alert Type Light, Port Number Display No, Waterproof No, Product Type Tone Generator, Calibration Certificate Not Included
graingerSKU: , mscSKU: , zoro_no: G9797103, mongo_id: 65bbe6203aaddbd5a900c49f

Web Price

$294.99 / each

Qty

Product Details

Adapters Included Coax

Alert Type Light

Altitude 3000 m

Application Cable/Wire and Pair Tracing, Continuity Testing, Polarity Indication and Service Detection

Applications Copper cabling media including; 75 or 50 Ohm Coaxial cable; Two Conductor control, security, generic cabling. 10 Base-T or 10/100 Base-T datacom networks. UTP cable. Shielded Twisted Pair supported in Cable Map function of the IntelliTone 200.

Auto power down Turns off automatically after 2 1/2 hours of inactivity

Battery Chemistry Alkaline

Battery Included Yes

Battery Life 20 Hour

Battery Size 9V

Battery type and life 9 V alkaline (NEDA 1604A or IEC 6LR61); 20 hours typical

Calibration Certificate Not Included

Certifications & Standards Safety: EN 61010-1, CEEMC:EN 61326-1, FCC Part 15 B

Compatible Cable Type Audio

Connector Type Alligator Clips

Control Thumbwheel switch

Country of Origin (subject to change) Malaysia

Data Logger No

Data Safe Monitor No

Depth 1.3

Device Function Coaxial Cable Testing, Twisted Pair Cable Testing, Continuity Testing

Dimensions 5.54 in x 2.94 in x 1.25 in (14.1 cm x 7.5 cm x 3.2 cm)

Display Screen Type LED

EMC EN 61326-1, FCC Part 15 B

Ethernet Technology Fast Ethernet

For Use With Single Conductor

Height 5.5

Includes Lanyard, RJ11 Patch Cord, RJ45 Patch Cord

Includes Batteries Yes

Input Voltage 9 V DC

IP Rating Not Applicable

Maximum Impedance Measured Not Applicable

Maximum Speed Measured Not Applicable

Media Type Supported Coaxial, Twisted Pair

Network (RJ-45) Yes

Network Standard 10/100Base-TX

Number of Batteries Required 1

Number of Network (RJ-45) Ports 1

Operating relative humidity (% RH without condensation) 95 % (50 ÃÂ°F to 95 ÃÂ°F; 10 ÃÂ°C to 35 ÃÂ°C) 75 % (95 ÃÂ°F to 104 ÃÂ°F; 35 ÃÂ°C to 40 ÃÂ°C) Uncontrolled < 50 ÃÂ°F (< 10 ÃÂ°C)

Operating temperature 32 ÃÂ°F to 104 ÃÂ°F (0 ÃÂ°C to 40 ÃÂ°C)

Ouptut power 5 V p-p

Output Amplitude 5 V

Package Contents IntelliTone Pro 200 LAN Toner, Coax F Connector Adapter, RJ11 Patch Cables, RJ 45 Patch Cables, Test Leads with Alligator Clips, Lanyard, Quick Start Guide, 9 Volt Battery

Package Quantity 1

Port Number Display No

Product Line IntelliTone

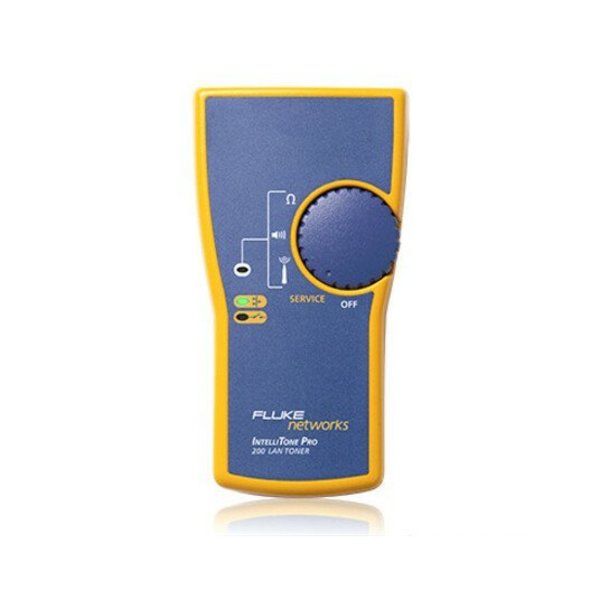

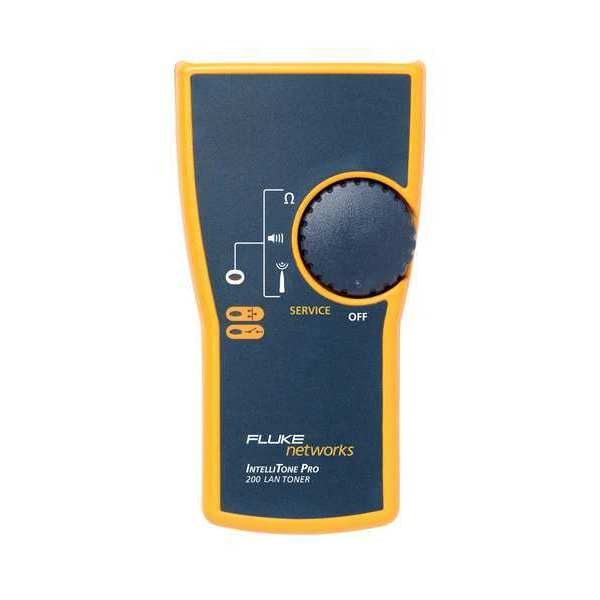

Product Name IntelliTone Pro 200 LAN Toner

Product Type Tone Generator

Promotion Restriction Not eligible for promotion

Safety EN 61010-1, Category: None

Shock 1 m drop test

Status Indicators LED indicate the presence of normal, reversed or MDIX Ethernet link connectivity

Storage temperature -4 ÃÂ°F to +140ÃÂ°F (-20 ÃÂ°C to ÃÂ°C)

Testing Functions Continuity Testing, Tone Generation, Wire Mapping

Toner frequency IntelliToneÃ¢ÂÂ¢ signal: encoded digital signal Analog SmartTone signal: 500 - 1200Hz, 4 songs

Toner interface Main Mod8 port for tone generation on all 4 pairs of UTP / STP cabling. F Connector for coaxial cabling Banana Jack Plugs (2) - two conductor wiring

Vibration Random, 2 g, 5 Hz-500 Hz

Waterproof No

Width 2.9

Wire Mapping Detections Crossed Pairs, Opens, Shorts
