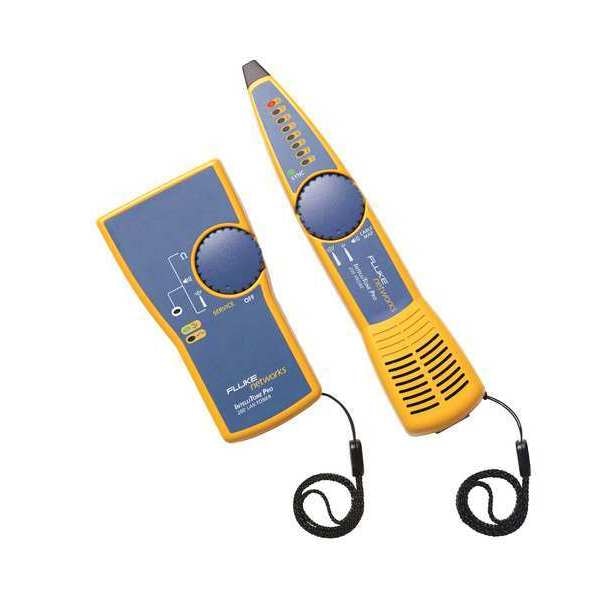

Name: Tone Gen/Probe Kit, Netwrk Infrastructure
Brand: Fluke Networks
SKU: G9797112
Price: 434.99 USD
Availability: InStock

Home / Tone Gen/Probe Kit, Netwrk Infrastructure

Tone Gen/Probe Kit, Netwrk Infrastructure

SKU
Brand Fluke Networks
Categories
Description Tone and Probe Kit, Testing Functions Continuity Testing, Tone Generation, Wire Mapping, Adapters Included F-Type, Connector Type Alligator Clips, Maximum Speed Measured Not Applicable, Data Safe Monitor No, Display Screen Type LED, For Use With Coax, Datacom and Generic Cables/Wiring, Single Conductor, Twisted Pair, Includes (2) Lanyards, (2) RJ11 Patch Cords, (2) RJ45 Patch Cords, IntelliTone(TM) 200 LAN Toner and Probe, Test Leads, Wire Mapping Detections Crossed Pairs, Opens, Shorts
graingerSKU: null, mscSKU: null, zoro_no: G9797112, mongo_id: 65bbe5b83aaddbd5a9fe106b

Web Price

$434.99 / each

Qty

Product Details

Adapter Type F-Type, RJ11, RJ45

Adapters Included F-Type

Alert Type Light, Sound

Altitude 3000 m

Application Cable/Wire and Pair Tracing, Continuity Testing, Polarity Indication and Service Detection

Applications Copper cabling media including; 75 or 50 Ohm Coaxial cable; Two Conductor control, security, generic cabling. 10 Base-T or 10/100 Base-T datacom networks. UTP cable. Shielded Twisted Pair supported in Cablemap function of the IntelliTone 200.

Audio Analog: Detected toner signal || IntelliTone: Microprocessor controlled audio files

Auto power down Turns off automatically after 2 1/2 hours of inactivity, Turns off automatically after 1 hour of inactivity

Auto Power Off Yes

Battery Chemistry Alkaline

Battery Included Yes

Battery Life 20 Hour

Battery Size 9V

Battery Size Supported 9V

Battery type and life 9 V alkaline (NEDA 1604A or IEC 6LR61); 20 hours typical

Built-In Cable Mapper

Cable Certification No

Cable Length Display No

Cable Speed Qualification No

Calibration Certificate Not Included

Certifications & Standards Safety: EN 61010-1EMC:EN 61326-1, FCC Part 15 B

Compatible Cable Type Audio, Twisted Pair

Connector Type Alligator Clips

Continuity Testing Yes

Control Thumbwheel switch, volume control wheel, Thumbwheel switch

Country of Origin (subject to change) Malaysia

Crosstalk Detection No

Data Line Polarity Indicator Yes

Data Logger No

Data Safe Monitor No

Device Function Cable Testing, Coaxial Cable Testing

Dimensions 5. 54 in x 2. 94 in x 1. 25 in (14. 1 cm x 7. 5 cm x 3. 2 cm), 8. 73 in x 1. 88 in x 1. 26 in (22. 2 cm x 4. 8 cm x 3. 2 cm)

Dimensions (Probe) 8.73 in x 1.88 in x 1.26 in (22.2 cm x 4.8 cm x 3.2 cm)

Dimensions (Toner) 5.54 in x 2.94 in x 1.25 in (14.1 cm x 7.5 cm x 3.2 cm)

Display (8) LED indicators, Sync LED indicator, LED

Display Screen Type LED

Distance to Fault No

Eithernet Service Detection Yes

EMC EN 61326-1, FCC Part 15 B

Endpoint Testing No

Endponit Testing No

Ethernet Service Detection Yes

For Use With Coax, Datacom and Generic Cables/Wiring, Single Conductor, Twisted Pair

Impedance Detection No

Includes (2) Lanyards, (2) RJ11 Patch Cords, (2) RJ45 Patch Cords, IntelliTone(TM) 200 LAN Toner and Probe, Test Leads

Includes Batteries Yes

Input Voltage 9 V DC

Instrument Display None

IP Rating Not Applicable

Maximum Impedance Measured Not Applicable

Maximum Operating Humidity 95 %

Maximum Operating Temperature 104 Degrees F

Maximum Speed Measured Not Applicable

Minimum Operating Temperature 32 Degrees F

Number of Batteries Required 2

Number of Batteries Supported 2

Opens/Shorts Detection No

Operating relative humidity (% RH without condensation) 75 % (95 ÃÂ°F to 104 ÃÂ°F; 35 ÃÂ°C to 40 ÃÂ°C) Uncontrolled < 50 ÃÂ°F (< 10 ÃÂ°C) || 95 % (50 ÃÂ°F to 95 ÃÂ°F; 10 oC to 35 ÃÂ°C)

Operating Temperature 32 ÃÂ°F to 104 ÃÂ°F (0 ÃÂ°C to 40 ÃÂ°C)

Ouptut power 5 V p-p

Output Amplitude 5 V

Package Contents IntelliTone Pro 200 LAN Toner and Probe Series, Coax F Connector Adapter, 2 x RJ11 Patch Cables, 2 x RJ 45 Patch Cables, Test Leads with Alligator Clips, Lanyards, Quick Start Guide, 2 x 9 Volt Batteries

Package Quantity 1

Pair Tracing Yes

PoE/PoE+ Detection No

Port Number Display No

Primary Function Copper Cable Tracing (Tone & Probe Kit)

Product Line IntelliTone

Product Name IntelliTone Pro 200 LAN Toner and Probe Series

Product Series Pro 200

Product Type Tone Generator and Probe Kit

Promotion Restriction Not eligible for promotion

Safety EN 61010-1, Category: None

Service Detection Yes

Shock 1 m drop test

Storage Temperature -4 ÃÂ°F to +140ÃÂ°F (-20 ÃÂ°C to ÃÂ°C)

Telephone Service Detection Yes

Testing Functions Continuity Testing, Tone Generation, Wire Mapping

Tone Detection Yes

Tone Generator Yes

Toner frequency IntelliToneÃ¢ÂÂ¢ signal: encoded digital signal || Analog SmartTone signal: 500 - 1200Hz, 4 songs

Toner interface Main Mod8 port for cablemap on all 4 pairs of UTP / STP cabling. , Main Mod8 port for tone generation on all 4 pairs of UTP / STP cabling. F Connector for coaxial cabling Banana Jack Plugs (2) - two conductor wiring

Vibration Random, 2 g, 5 Hz-500 Hz

Waterproof No

WiFi Capability No

Wire Mapping Detections Crossed Pairs, Opens, Shorts

Wiremapping No
