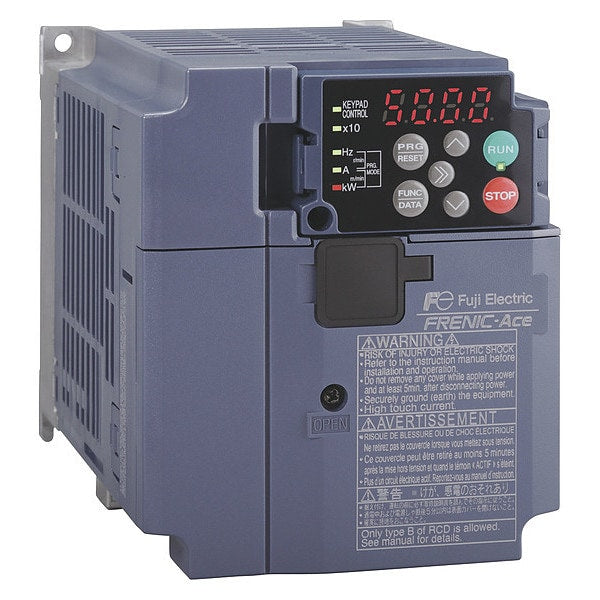

Drive, Max HP 20, Enclosure NEMA 1

SKU
Brand Fuji Electric
Categories
Description Mini Inverter, Input Voltage 230V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 20 hp, Maximum Output Current 60 A, Output Voltage 200 to 240V AC, Output Phase AC Three, Output Frequency Range 0.1 to 400 Hz, Enclosure Rating NEMA 1
graingerSKU: 482J42, mscSKU: , zoro_no: G6562409, mongo_id: 65bbe8819a749db822796d46

Web Price

$1,334.99 / each

Product Details

Accepts Input Control Signal 0-10V DC, 4-20mA

Adjustable Acceleration Time 0 to 3600 sec

Adjustable Deceleration Time 0 to 3600 sec

Application Centrifugal Separators, Conveyors, Fans, Food Processing Machines, Pumps

Brake Chopper Included Yes

Color Black/Blue/Gray

Control Method Keypad

Control Type Keypad

Country of Origin (subject to change) Taiwan, Province of China

Depth 7.48 in

Digital Readout Current, Frequency, PID Operating Data, Speed, Voltage Output

Display Type LED

Displays LED

Dynamic Braking Yes

Enclosure Open

Enclosure Rating NEMA 1

Ethernet Port Included No

For Use With 3-Phase Input Drive

Height 10.24 in

Input Frequency 50/60 Hz

Input Phase AC Three

Input Type Analog, Digital

Input Voltage 230V

Input Voltage Range 200V-240V AC +10% / -15%

Key Pad Lockout Yes

Max. HP 20 hp

Max. Output Amps 60 A

Maximum Output Current 60 A

Maximum Output Power 20 hp

Number of Inputs (5) Digital; (2) Analog

Number of Outputs (2) Digital; (1) Analog

Output Frequency Range 0.1 to 400 Hz

Output Phase AC Three

Output Type Analog, Digital

Output Voltage 200 to 240V

Output Voltage Range 0V AC to 230V AC

Overall Depth 7 1/2 in

Overall Height 10 1/4 in

Overall Width 8 5/8 in

Package Quantity 1

Protection External alarm input, Ground fault, Input phase loss, Output phase loss detected, Overcurrent, Overheating, Overload, Overvoltage, Short-circuit, Undervoltage

Series FRENIC Mini-C2

Standards CE, EN61800-5-1, UL 508C

Start/Stop Control Programmable

Starting Torque 150%

Style Heat Sink

Torque @ 1 Hz 150%

Torque Application Constant Torque

Width 8.66 in

With Bypass / No Bypass No Bypass

With Line Contactor / No Line Contactor No Line Contactor
