Home / Variable Frequency Drive, 1 HP, 200-230V

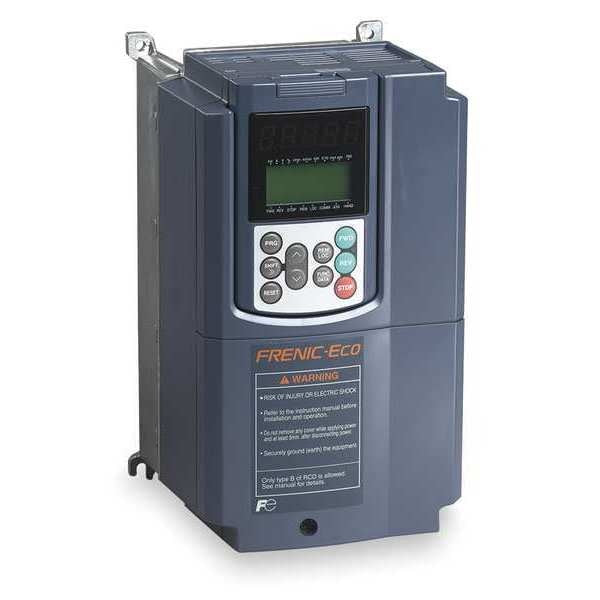

Variable Frequency Drive, 1 HP, 200-230V

SKU
Brand Fuji Electric
Categories
Description Multi-Functional Inverter, Input Voltage 240V AC, Input Phase AC Single, Three, Input Frequency 50/60 Hz, Maximum Output Power 1 hp, Maximum Output Current 8 A, Output Voltage 240V AC, Output Phase AC Three, Output Frequency Range 25 to 500 Hz, Enclosure Rating NEMA 1
graingerSKU: 33M551, mscSKU: , zoro_no: G4714543, mongo_id: 65bbe5c33aaddbd5a9fe5db1

Web Price

$563.74 / each

Qty

Product Details

Accepts Input Control Signal 4 to 20mA and Digital, 5V DC, Analog 0-10V DC

Adjustable Acceleration Time 0 to 6,000 sec

Adjustable Deceleration Time 0 to 6,000 sec

Application Precise Motor Control

Brake Chopper Included No

Color Black/Blue/Gray

Control Method Keypad

Control Type Keypad

Country of Origin (subject to change) Multiple

Depth 5.71 in

Digital Readout Yes

Display Type LED

Displays LCD Keypad

Dynamic Braking No

Enclosure Open

Enclosure Rating NEMA 1

Ethernet Port Included Yes

For Use With General Purpose and Inverter Duty 3-Phase Motors

Height 10.24 in

Input Frequency 50/60 Hz

Input Phase AC Single, Three

Input Type Analog, Digital

Input Voltage 240V AC

Input Voltage Range 200 to 240V AC

Key Pad Lockout None

Max. HP 1 hp

Max. Output Amps 5 A

Maximum Output Current 8 A

Maximum Output Power 1 hp

Number of Inputs (2) Safety, (3) Analog, (9) Digital

Number of Outputs (2) Analog, (6) Digital

Output Frequency Range 25 to 500 Hz

Output Phase AC Three

Output Type Analog, Digital

Output Voltage 240V AC

Output Voltage Range 200V AC to 240V AC

Overall Depth 5 3/4 in

Overall Height 10 1/4 in

Overall Width 4 3/8 in

Package Quantity 1

Protection Electronic Thermal Overload 1 through 4 motor, Over Current, Over Voltage, Low Voltage, PG, PID, Heat sink Overheat, Input & output phase loss, Communication Error.

Series FRENIC-MEGA

Standards C22.2 No. 14, CE EN61800-5-1, cUL UL508C, EN61800-5:2007, RoHS Compliant 2002/96/EC, UL

Start/Stop Control Automatic, Manual, Programmable

Starting Torque 200%

Style Compact/Heat Sink

Torque @ 1 Hz 200%

Torque Application Constant Torque, Variable Torque

Width 4.33 in

With Bypass / No Bypass No Bypass

With Line Contactor / No Line Contactor No Line Contactor
