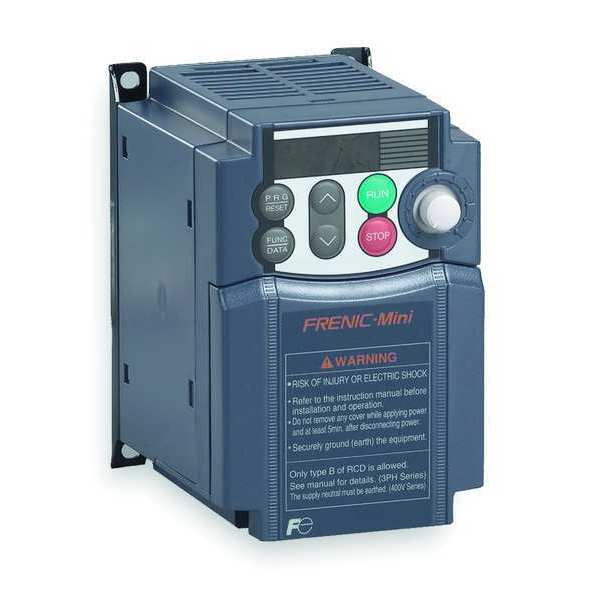

Variable Frequency Drive, 1/2 HP, 380-480V

SKU
Brand Fuji Electric
Categories
Description Mini Inverter, Input Voltage 460V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 1/2 hp, Maximum Output Current 1.8 A, Output Voltage 380 to 480V AC, Output Phase AC Three, Output Frequency Range 0.1 to 400 Hz, Enclosure Rating NEMA 1
graingerSKU: , mscSKU: , zoro_no: G0878412, mongo_id: 65bbe6093aaddbd5a9002cd1

Web Price

$378.74 / each

Qty

Product Details

Accepts Input Control Signal 0-10V DC, 0-5V DC or 4 to 20mA

Adjustable Acceleration Time 0 to 3,600 sec

Adjustable Deceleration Time 0 to 3,600 sec

Application Centrifugal Separators, Conveyors, Fans, Food Processing Machines, Pumps

Brake Chopper Included Yes

Color Black/Blue/Gray

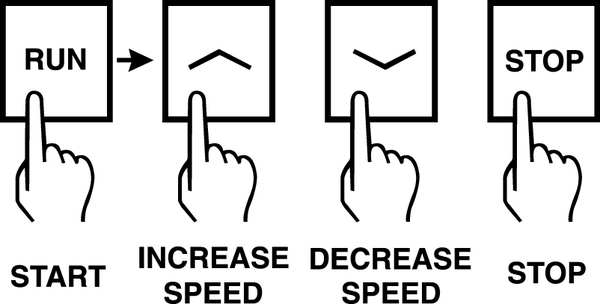

Control Method Keypad

Control Type Keypad

Country of Origin (subject to change) Multiple

Depth 4.53 in

Digital Readout Current, Frequency, PID Operating Data, Speed, Voltage Output

Display Type LED

Displays LED

Dynamic Braking Yes

Enclosure Open

Enclosure Rating NEMA 1

Ethernet Port Included No

Height 5.12 in

Input Frequency 50/60 Hz

Input Phase AC Three

Input Type Analog, Digital

Input Voltage 460V AC

Input Voltage Range 380V-480V AC +10% / -15%

Max. HP 0.5 hp

Max. Output Amps 1.5 A

Maximum Output Current 1.8 A

Maximum Output Power 1/2 hp

Number of Inputs (5) Digital; (2) Analog

Number of Outputs (2) Digital; (1) Analog

Output Frequency Range 0.1 to 400 Hz

Output Phase AC Three

Output Type Analog, Digital

Output Voltage 380 to 480V AC

Output Voltage Range 0V AC to 460V AC

Overall Depth 4 1/2 in

Overall Height 5 1/8 in

Overall Width 4 3/8 in

Package Quantity 1

Protection External alarm input, Ground fault, Input phase loss, Output phase loss detected, Overcurrent, Overheating, Overload, Overvoltage, Short-circuit, Undervoltage

Series FRENIC Mini-C2

Standards CE, EN61800-5-1, UL 508C

Start/Stop Control Programmable

Starting Torque 150%

Style Heat Sink

Torque @ 1 Hz 150%

Torque Application Constant Torque

Width 4.33 in

With Bypass / No Bypass No Bypass

With Line Contactor / No Line Contactor No Line Contactor
