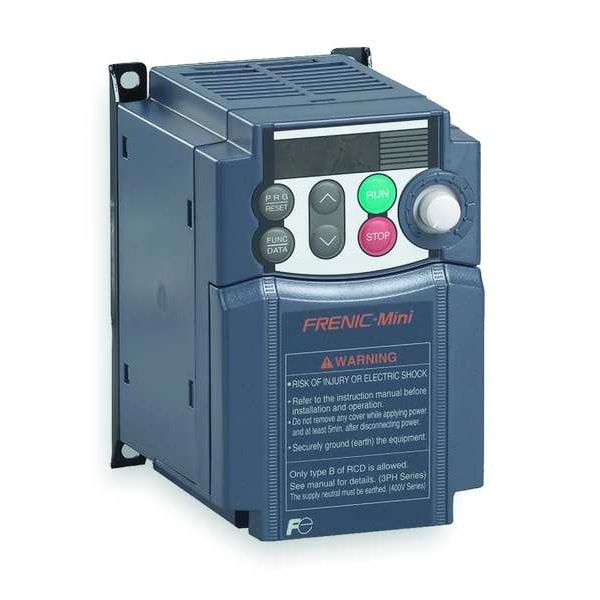

Variable Frequency Drive, 1/8 HP, 115VAC

SKU
Brand Fuji Electric
Categories
Description Mini Inverter, Input Voltage 115V AC, Input Phase AC Single, Input Frequency 50/60 Hz, Maximum Output Power 1/8 hp, Maximum Output Current 0.7 A, Output Voltage 200 to 240V AC, Output Phase AC Three, Output Frequency Range 0.1 to 400 Hz, Enclosure Rating NEMA 1
graingerSKU: 3XA37, mscSKU: , zoro_no: G2801075, mongo_id: 65bbe85622d7a989a98ec5ae

Web Price

$222.49 / each

Qty

Product Details

Accepts Input Control Signal 0-10V DC, 0-5V DC or 4 to 20mA

Adjustable Acceleration Time 0 to 3,600 sec

Adjustable Deceleration Time 0 to 3,600 sec

Application Centrifugal Separators, Conveyors, Fans, Food Processing Machines, Pumps

Brake Chopper Included No

Color Black/Blue/Gray

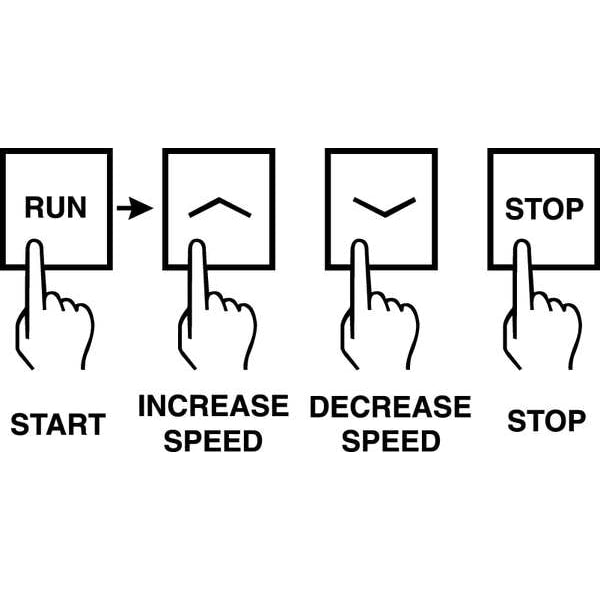

Control Method Keypad

Control Type Keypad

Country of Origin (subject to change) Multiple

Depth 3.94 in

Digital Readout Current, Frequency, PID Operating Data, Speed, Voltage Output

Display Type LED

Displays LED

Dynamic Braking No

Enclosure Open

Enclosure Rating NEMA 1

Ethernet Port Included No

Height 4.72 in

Input Frequency 50/60 Hz

Input Phase AC Single

Input Type Analog, Digital

Input Voltage 115V AC

Input Voltage Range 100V-120V AC +/-10%

Max. HP 0.125 hp

Max. Output Amps 0.7 A

Maximum Output Current 0.7 A

Maximum Output Power 1/8 hp

Number of Inputs (5) Digital; (2) Analog

Number of Outputs (2) Digital; (1) Analog

Output Frequency Range 0.1 to 400 Hz

Output Phase AC Three

Output Type Analog, Digital

Output Voltage 200 to 240V AC

Output Voltage Range 0V AC to 230V AC

Overall Depth 4 in

Overall Height 4 3/4 in

Overall Width 3 1/8 in

Package Quantity 1

Protection External alarm input, Ground fault, Input phase loss, Output phase loss detected, Overcurrent, Overheating, Overload, Overvoltage, Short-Circuit, Undervoltage

Series FRENIC Mini-C2

Standards CE, EN61800-5-1, UL 508C

Start/Stop Control Programmable

Starting Torque 150%

Style Heat Sink

Torque @ 1 Hz 150%

Torque Application Constant Torque

Width 3.15 in

With Bypass / No Bypass No Bypass

With Line Contactor / No Line Contactor No Line Contactor
