Home / Variable Frequency Drive, 2 HP, 208VAC

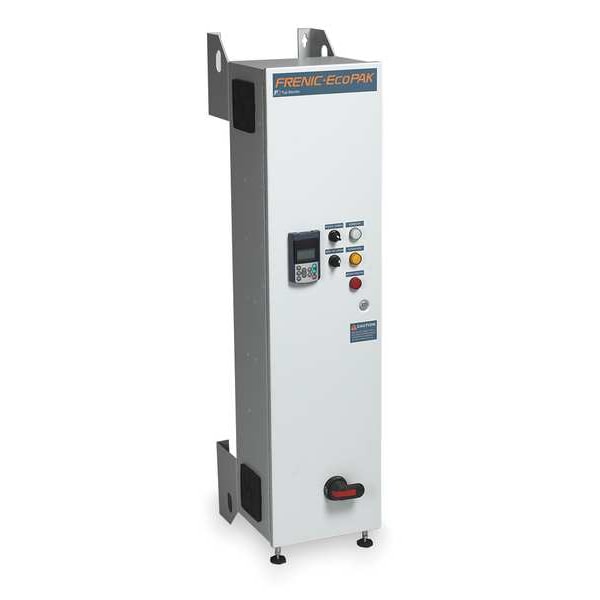

Variable Frequency Drive, 2 HP, 208VAC

SKU
Brand Fuji Electric
Categories
Description Variable Frequency Drive, Input Voltage 208V AC, Input Phase AC Three, Input Frequency 60 Hz, Maximum Output Power 2 hp, Maximum Output Current 7.5 A, Output Voltage 208V AC, Output Phase AC Three, Output Frequency Range 0.1 to 120 Hz, Enclosure Rating NEMA 1
graingerSKU: 4UAK8, mscSKU: , zoro_no: G2353736, mongo_id: 65bbe88122d7a989a98faacc

Web Price

$3,887.49 / each

Qty

Product Details

Accepts Input Control Signal Remote Contact

Adjustable Acceleration Time 0 to 3,600 sec

Adjustable Deceleration Time 0 to 3,600 sec

Application HV AC

Brake Chopper Included No

Color Black/Blue/Gray

Control Method Variable Frequency Control

Control Type Keypad, Remote

Country of Origin (subject to change) United States

Depth 16.09 in

Digital Readout Yes

Display Type LED

Displays LED

Dynamic Braking Yes

Enclosure Totally Enclosed

Enclosure Material Steel

Enclosure Rating NEMA 1

Ethernet Port Included No

For Use With 3-Phase Inverter Duty Motor

Height 53 in

Input Frequency 60 Hz

Input Phase AC Three

Input Voltage 208V AC

Input Voltage Range 200V-240V AC +10% / -15%

Key Pad Lockout Yes

Max. HP 2 hp

Max. Output Amps 7.5 A

Maximum Output Current 7.5 A

Maximum Output Power 2 hp

Number of Inputs (7) Digital; (3) Analog

Number of Outputs (5) Digital; (2) Analog

Output Frequency Range 0.1 to 120 Hz

Output Phase AC Three

Output Type Analog, Digital

Output Voltage 208V AC

Output Voltage Range 0V AC to 230V AC

Overall Depth 16 1/8 in

Overall Height 53 in

Overall Width 12 1/2 in

Package Quantity 1

Protection Drive Thermal Overload, Motor Thermal Overload, Over breaking, Overvoltage, Phase Failure, Phase to Phase or Phase to Ground Short Circuit, Under voltage

Series FRENIC EcoPAK

Standards UL, CSA, CE

Start/Stop Control Programmable

Starting Torque 2

Style Engineered Panel

Torque @ 1 Hz 2

Torque Application Variable Torque

Width 12.46 in

With Bypass / No Bypass With Bypass

With Line Contactor / No Line Contactor With Line Contactor
