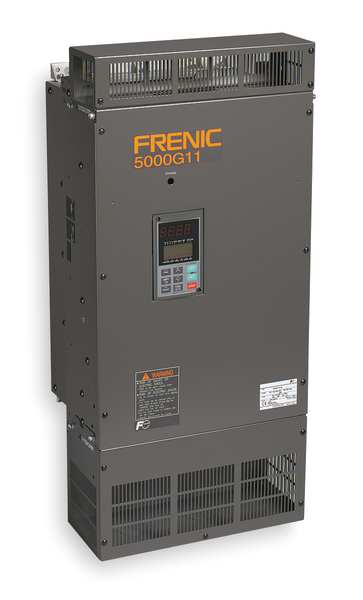

Variable Frequency Drive, 250 HP, 380-480V

SKU
Brand Fuji Electric
Categories
Description Multifunctional Inverter, Input Voltage 460V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 250 hp, Maximum Output Current 304 A, Output Voltage 480V AC, Output Phase AC Three, Output Frequency Range 0 to 500 Hz, Enclosure Rating IP00
graingerSKU: 33M531, mscSKU: , zoro_no: G5214575, mongo_id: 65bbe8ef22d7a989a9925b78

Web Price

$16,548.74 / each

Qty

Product Details

Accepts Input Control Signal 4 to 20mA and Digital, 5V DC, Analog 0-10V DC

Adjustable Acceleration Time 0 to 6000 sec

Adjustable Deceleration Time 0 to 6000 sec

Control Method V/F, Dynamic Torque Vector, V/F Control with Speed Sensor or Dynamic Torque Control with Speed Sensor, Vector Control without Speed Sensor, Vector Control with Speed Sensor and Optional PG Card Mounted

Control Type Keypad and Terminal

Country of Origin (subject to change) Multiple

Depth 14.17 in

Digital Readout Yes

Display Type LCD Monitor and Green Run Indicator

Displays LCD Monitor & Green Run Indicator

Dynamic Braking Brake Unit and Resistor Separate Items

Enclosure Open

For Use With General Purpose and Inverter Duty 3-Phase Motors

Height 39.37 in

Input Frequency 120 Hz

Input Phase AC 1 or 3

Input Voltage 480V AC

Key Pad Lockout Yes

Max. HP 250 hp

Max. Output Amps 253 A

Output Frequency Range 0 to 500 Hz

Output Phase AC 3

Output Voltage 480V AC

Package Quantity 1

Protection Electronic Thermal Overload 1 through 4 motor, Over Current, Over Voltage, Low Voltage, PG, PID, Heat sink Overheat, Input & output phase loss, Communication Error.

Standards cUL and US Listed, CE and RoHS Directives

Start/Stop Control Keypad and Terminal

Starting Torque 200%

Torque @ 1 Hz 200 %

Width 20.97 in

With Bypass / No Bypass No Bypass

With Line Contactor / No Line Contactor No Line Contactor
