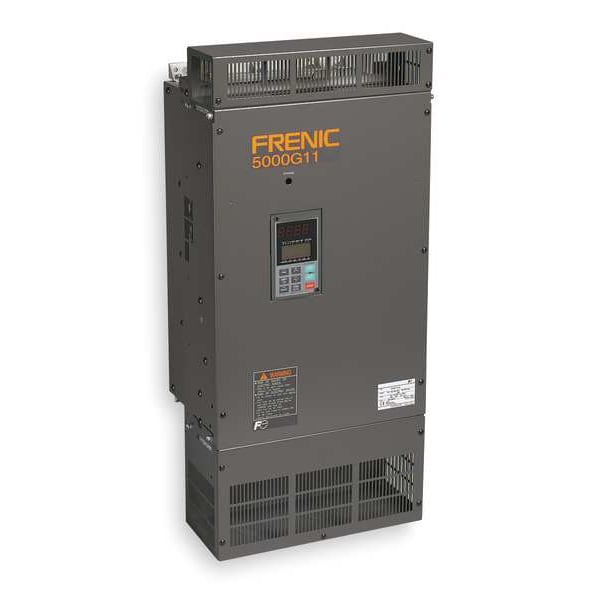

Variable Frequency Drive, 50 HP, 200-230V

SKU
Brand Fuji Electric
Categories
Description Multifunctional Inverter, Input Voltage 230V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 50 hp, Maximum Output Current 146 A, Output Voltage 230V AC, Output Phase AC Three, Output Frequency Range 0 to 500 Hz, Enclosure Rating IP00
graingerSKU: 33M562, mscSKU: , zoro_no: G4720597, mongo_id: 65bbe6b43aaddbd5a904a533

Web Price

$5,299.99 / each

Qty

Product Details

Accepts Input Control Signal 4 to 20mA and Digital, 5V DC, Analog 0-10V DC

Adjustable Acceleration Time 0 to 6000 sec

Adjustable Deceleration Time 0 to 6000 sec

Control Method V/F, Dynamic Torque Vector, V/F Control with Speed Sensor or Dynamic Torque Control with Speed Sensor, Vector Control without Speed Sensor, Vector Control with Speed Sensor and Optional PG Card Mounted

Control Type Keypad and Terminal

Country of Origin (subject to change) Multiple

Depth 10.04 in

Digital Readout Yes

Display Type LCD Monitor and Green Run Indicator

Displays LCD Monitor & Green Run Indicator

Dynamic Braking Brake Unit and Resistor Separate Items

Enclosure Open

For Use With General Purpose and Inverter Duty 3-Phase Motors

Height 21.65 in

Input Frequency 120 Hz

Input Phase AC 1 or 3

Input Voltage 240V AC

Key Pad Lockout Yes

Max. HP 50 hp

Max. Output Amps 119 A

Output Frequency Range 0 to 500 Hz

Output Phase AC 3

Output Voltage 240V AC

Package Quantity 1

Protection Electronic Thermal Overload 1 through 4 motor, Over Current, Over Voltage, Low Voltage, PG, PID, Heat sink Overheat, Input & output phase loss, Communication Error.

Standards cUL and US Listed, CE and RoHS Directives

Start/Stop Control Keypad and Terminal

Starting Torque 200%

Torque @ 1 Hz 200 %

Width 12.6 in

With Bypass / No Bypass No Bypass

With Line Contactor / No Line Contactor No Line Contactor
