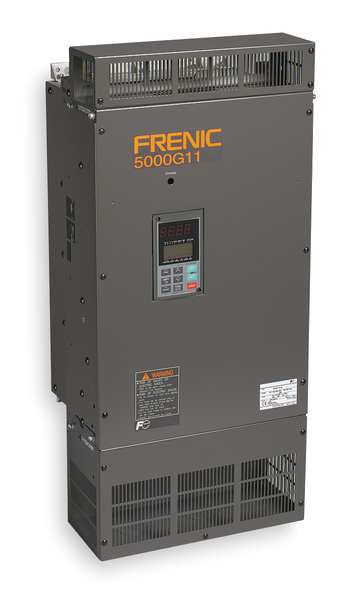

Variable Frequency Drive, 50 HP, 380-480V

SKU
Brand Fuji Electric
Categories
Description Multi-Functional Inverter, Input Voltage 480V AC, Input Phase AC Single, Three, Input Frequency 50/60 Hz, Maximum Output Power 50 hp, Maximum Output Current 75 A, Output Voltage 480V AC, Output Phase AC Three, Output Frequency Range 25 to 500 Hz, Enclosure Rating NEMA 1
graingerSKU: 33M510, mscSKU: , zoro_no: G4144589, mongo_id: 65bbe98822d7a989a995f118

Web Price

$4,339.99 / each

Qty

Product Details

Accepts Input Control Signal 4 to 20mA and Digital, 5V DC, Analog 0-10V DC

Adjustable Acceleration Time 0 to 6,000 sec

Adjustable Deceleration Time 0 to 6,000 sec

Application Precise Motor Control

Brake Chopper Included No

Color Black/Blue/Gray

Control Method Keypad

Control Type Keypad

Country of Origin (subject to change) Multiple

Depth 10.04 in

Digital Readout Yes

Display Type LED

Displays LCD Keypad

Dynamic Braking No

Enclosure Open

Enclosure Rating NEMA 1

Ethernet Port Included Yes

For Use With General Purpose and Inverter Duty 3-Phase Motors

Height 21.85 in

Input Frequency 50/60 Hz

Input Phase AC Single, Three

Input Type Analog, Digital

Input Voltage 480V AC

Input Voltage Range 380 to 480V AC

Key Pad Lockout None

Max. HP 50 hp

Max. Output Amps 60 A

Maximum Output Current 75 A

Maximum Output Power 50 hp

Number of Inputs (2) Safety, (3) Analog, (9) Digital

Number of Outputs (2) Analog, (6) Digital

Output Frequency Range 25 to 500 Hz

Output Phase AC Three

Output Type Analog, Digital

Output Voltage 480V AC

Output Voltage Range 380V AC to 480V AC

Overall Depth 10 in

Overall Height 21 5/8 in

Overall Width 12 5/8 in

Package Quantity 1

Protection Electronic Thermal Overload 1 through 4 motor, Over Current, Over Voltage, Low Voltage, PG, PID, Heat sink Overheat, Input & output phase loss, Communication Error.

Series FRENIC-MEGA

Standards C22.2 No. 14, CE EN61800-5-1, cUL UL508C, EN61800-5:2007, RoHS Compliant 2002/96/EC, UL

Start/Stop Control Automatic, Manual, Programmable

Starting Torque 180%

Style Compact/Heat Sink

Torque @ 1 Hz 180%

Torque Application Constant Torque, Variable Torque

Width 12.6 in

With Bypass / No Bypass No Bypass

With Line Contactor / No Line Contactor No Line Contactor
