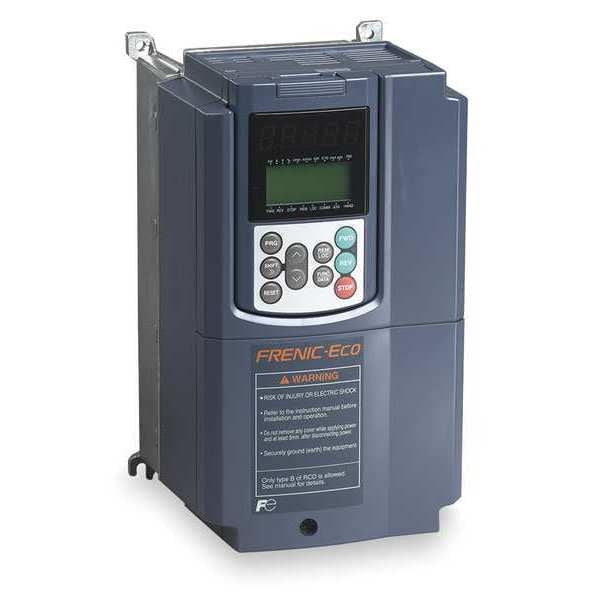

Variable Frequency Drive, 7.5HP, 380-480V

SKU
Brand Fuji Electric
Categories
Description Variable Frequency Drive, Input Voltage 460V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 7 1/2 hp, Maximum Output Current 12.5 A, Output Voltage 480V AC, Output Phase AC Three, Output Frequency Range 0.1 to 120 Hz, Enclosure Rating NEMA 1
graingerSKU: 4UAJ3, mscSKU: , zoro_no: G2534612, mongo_id: 65bbedfe526e052139ae301f

Web Price

$1,167.49 / each

Qty

Product Details

Accepts Input Control Signal Remote Contact

Adjustable Acceleration Time 0 to 3,600 sec

Adjustable Deceleration Time 0 to 3,600 sec

Application HV AC

Brake Chopper Included No

Color Black/Blue/Gray

Control Method Variable Frequency Control

Control Type Keypad, Remote

Country of Origin (subject to change) Multiple

Depth 6.42 in

Digital Readout Output Frequency, Output Current, Output Voltage

Display Type LCD, LED

Displays Motor Speed With Percent, Alarm Code, Menu, Function Code

Dynamic Braking Yes

Enclosure Open

Enclosure Rating NEMA 1

Ethernet Port Included No

For Use With 3-Phase Inverter Duty Motor

Height 10.24 in

Input Frequency 50/60 Hz

Input Phase AC Three

Input Type Analog, Digital

Input Voltage 460V AC

Input Voltage Range 380V-480V AC +10% / -15%

Key Pad Lockout Yes

Max. HP 7.5 hp

Max. Output Amps 9.9 A

Maximum Output Current 12.5 A

Maximum Output Power 7 1/2 hp

Number of Inputs (7) Digital; (3) Analog

Number of Outputs (5) Digital; (2) Analog

Output Frequency Range 0.1 to 120 Hz

Output Phase AC Three

Output Type Analog, Digital

Output Voltage 480V AC

Output Voltage Range 0V AC to 460V AC

Overall Depth 6 3/8 in

Overall Height 10 1/4 in

Overall Width 5 7/8 in

Package Quantity 1

Protection Drive Thermal Overload, Motor Thermal Overload, Over breaking, Overvoltage, Phase Failure, Phase to Phase or Phase to Ground Short Circuit, Under voltage

Series FRENIC - Eco

Standards UL508C, C22.2 No.14, EN50178-1997

Start/Stop Control Programmable

Starting Torque 50%

Style Heat Sink

Torque @ 1 Hz 50%

Torque Application Variable Torque

Width 5.91 in

With Bypass / No Bypass No Bypass

With Line Contactor / No Line Contactor No Line Contactor
