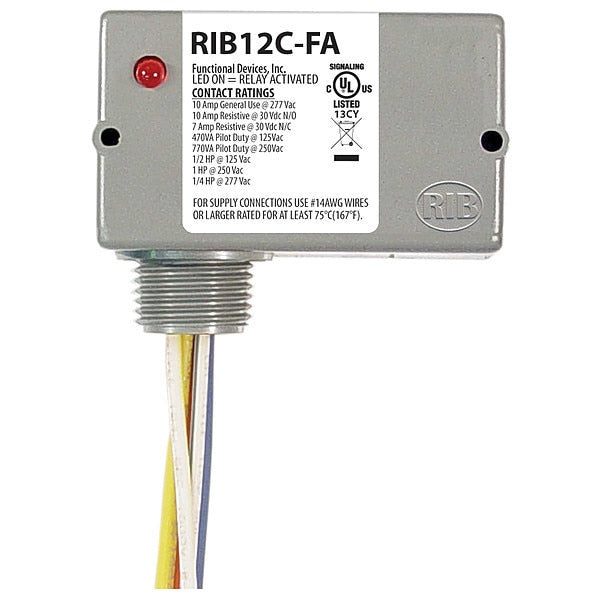

Enclosed Relay, 10A, SPDT

SKU
Brand Functional Devices-Rib
Categories
Description Enclsd Relay,10A,SPDT,12VAC/DC,Polarized
graingerSKU: 244V93, mscSKU: , zoro_no: G3224632, mongo_id: 65bbea5222d7a989a99a8ef8

Web Price

$56.49 / each

Qty

Product Details

Approvals UL Listed, UL916, UL864, C-UL California State Fire Marshal, CE

Coil Current 53 mA @ 10 Vac 62 mA @ 12 Vac 29 mA @ 11 Vdc 36 mA @ 12 Vdc

Coil Voltage Input 12 Vac/dc ; 50-60 Hz Drop Out - 2 Vac / 2.5 Vdc Pull In - 9 Vac / 11 Vdc

Coil Volts 12VAC/DC

Contact Ratings 10 Amp General Use @ 277 Vac 10 Amp Resistive @ 30 Vdc (N/O) 7 Amp Resistive @ 30 Vdc (N/C) 1/2 HP @ 125 Vac 1 HP @ 250 Vac 1/4 HP @ 277 Vac 470 VA Pilot Duty @ 125 Vac 770 VA Pilot Duty @ 250 Vac

Country of Origin (subject to change) United States

Dimensions 1.70H x 2.80W x 1.50D with 0.50 NPT nipple

Expected Relay Life 10 million cycles minimum mechanical

Gold Flash No

Height 1.5

Housing Rating UL Accepted for Use in Plenum, NEMA 1

Humidity Range 5 to 95% (noncondensing)

No. of Relays & Contact Type One (1) SPDT Continuous Duty Coil (RIB12C-FA)

Operate Time 6ms

Operating Temperature -30 to 140ÃÂ° F

Override Switch No (RIB12C-FA)

Package Quantity 1
