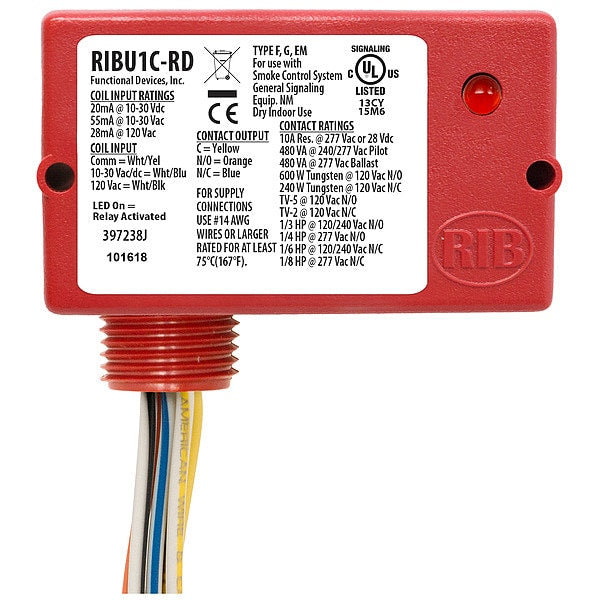

Enclosed Relay, 10A, SPDT

SKU
Brand Functional Devices-Rib
Categories
Description Enclsd Relay,10A,SPDT,12VAC/DC,Polarized
graingerSKU: 244X96, mscSKU: , zoro_no: G3226592, mongo_id: 65bbe85f22d7a989a98ee7a4

Web Price

$38.24 / each

Qty

Product Details

Approvals UL Listed, C-UL, CE (All models), UL864

Coil Current 33 mA @ 10 Vac 35 mA @ 12 Vac 46 mA @ 24 Vac 55 mA @ 30 Vac 28 mA @ 120 Vac (RIBU1C) 13 mA @ 10 Vdc 15 mA @ 12 Vdc 18 mA @ 24 Vdc 20 mA @ 30 Vdc

Coil Voltage Input 10-30 Vac/dc ; 120 Vac ; 50-60 Hz (RIBU1C) Drop Out - 2.1 Vac / 2.8 Vdc Pull In - 9 Vac / 10 Vdc

Coil Volts 12VAC/DC

Contact Ratings 10 Amp Resistive @ 277 Vac 10 Amp Resistive @ 28 Vdc 480 VA Pilot Duty @ 240-277 Vac 480 VA Ballast @ 277 Vac Not rated for Electronic Ballast 600 Watt Tungsten @ 120 Vac (N/O) 240 Watt Tungsten @ 120 Vac (N/C) 1/3 HP @ 120-240 Vac (N/O) 1/6 HP @ 120-240 Vac (N/C) 1/4 HP @ 277 Vac (N/O) 1/8 HP @ 277 Vac (N/C)

Country of Origin (subject to change) United States

Dimensions 1.70H x 2.80W x 1.50D with 0.50 NPT nipple

Expected Relay Life 10 million cycles minimum mechanical

Gold Flash Yes

Height 1.5

Housing Color Red

Housing Rating UL Accepted for Use in Plenum, NEMA 1

Humidity Range 5 to 95% (noncondensing)

No. of Relays & Contact Type One (1) SPDT Continuous Duty Coil

Operate Time 20ms

Operating Temperature -30 to 140ÃÂ° F

Override Switch No
