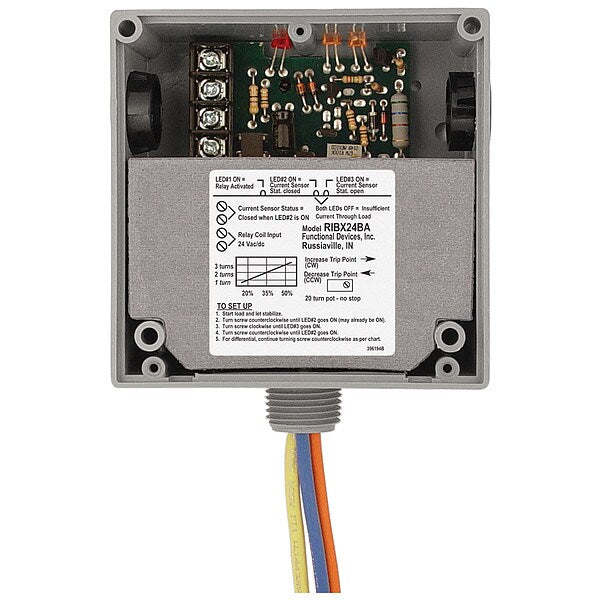

Enclosed Relay/Adj. Current Switch, 20A

SKU
Brand Functional Devices-Rib
Categories
Description Enclsd,20A,Rly/Adjustable Current Switch
graingerSKU: 244Y15, mscSKU: , zoro_no: G3226778, mongo_id: 65bbe85f9a749db82278a868

Web Price

$134.99 / each

Qty

Product Details

Approvals UL Listed, UL916, C-UL, CE

Coil Current 50 mA @ 18 Vac 83 mA @ 24 Vac 33 mA @ 22 Vdc 35 mA @ 24 Vdc 47 mA @ 30 Vdc

Coil Voltage Input 24 Vac/dc ; 50-60 Hz Drop Out - 3 Vac / 3.8 Vdc Pull In - 18 Vac / 22 Vdc

Contact Ratings 20 Amp Resistive @ 277 Vac 20 Amp Ballast @ 277 Vac 16 Amp Electronic Ballast @ 277 Vac (N/O) 10 Amp Tungsten @ 120 Vac (N/O) 1,110 VA Pilot Duty @ 277 Vac 770 VA Pilot Duty @ 120 Vac 240 Watt Tungsten @ 120 Vac (N/C) 2 HP @ 277 Vac 1 HP @ 120 Vac

Country of Origin (subject to change) United States

Dimensions 4.00H x 4.00W x 1.81D with 0.50 NPT nipple

Expected Relay Life 10 million cycles minimum mechanical

Gold Flash No

Housing Rating UL Accepted for Use in Plenum, NEMA 1

Humidity Range 5 to 95% (noncondensing)

Operate Time 20ms

Operating Temperature -30 to 140ÃÂ° F

Override Switch No

Package Quantity 1

Relay Status Red LED On - Activated

Resistive 20 Amp
