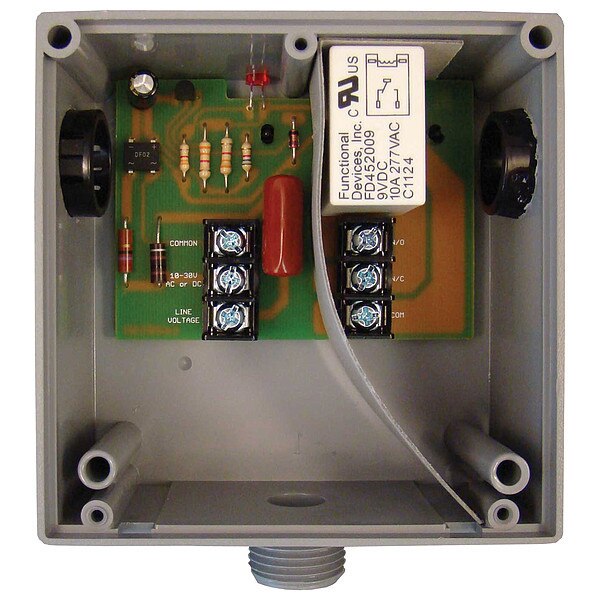

Enclosed T-Style Relay, Hi/Low

SKU
Brand Functional Devices-Rib
Categories
Description Enclsd T-Styl Rly,Hi/Low,10-30VAC/DC,208
graingerSKU: 244X97, mscSKU: , zoro_no: G3226647, mongo_id: 65bbe9fd22d7a989a998c4ae

Web Price

$48.74 / each

Qty

Product Details

Approvals UL Listed, UL916, C-UL, CE UL864, California State Fire Marshal

Coil Current 33 mA @ 10 Vac 35 mA @ 12 Vac 46 mA @ 24 Vac 55 mA @ 30 Vac 28 mA @ 120 Vac (RIBU1CW) 13 mA @ 10 Vdc 15 mA @ 12 Vdc 18 mA @ 24 Vdc 20 mA @ 30 Vdc

Coil Voltage Input 10-30 Vac/dc ; 120 Vac ; 50-60 Hz (RIBU1CW) Drop Out - 2.1 Vac / 2.8 Vdc Pull In - 9 Vac / 10 Vdc

Coil Volts 10 to 30VAC/DC, 208 to 277VAC

Contact Ratings 15 Amp Resistive @ 150 Vac, 28Vdc 15 Amp Inductive @ 150 Vac 10 Amp Resistive @ 277 Vac 480 VA Pilot Duty @ 240-277 Vac 480 VA Ballast @ 277 Vac Not rated for Electronic Ballast 600 Watt Tungsten @ 120 Vac (N/O) 240 Watt Tungsten @ 120 Vac (N/C) 1/3 HP @ 120-240 Vac (N/O) 1/6 HP @ 120-240 Vac (N/C) 1/4 HP @ 277 Vac (N/O) 1/8 HP @ 277 Vac (N/C)

Country of Origin (subject to change) United States

Dimensions 4.00H x 4.00W x 1.81D with 0.50 NPT nipple

Expected Relay Life 10 million cycles minimum mechanical

Gold Flash Yes

Height 1.8

Housing Rating UL Accepted for Use in Plenum, NEMA 1

Humidity Range 5 to 95% (noncondensing)

No. of Relays & Contact Type One (1) SPDT Continuous Duty Coil

Operate Time 20ms

Operating Temperature -30 to 140ÃÂ° F

Override Switch No

Package Quantity 1
