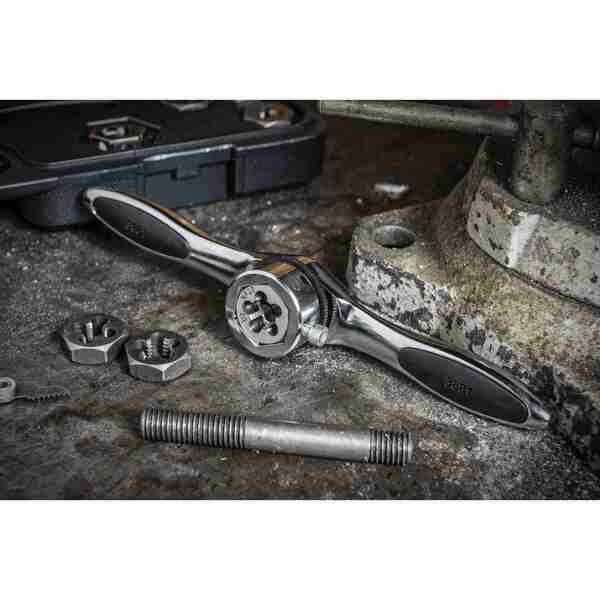

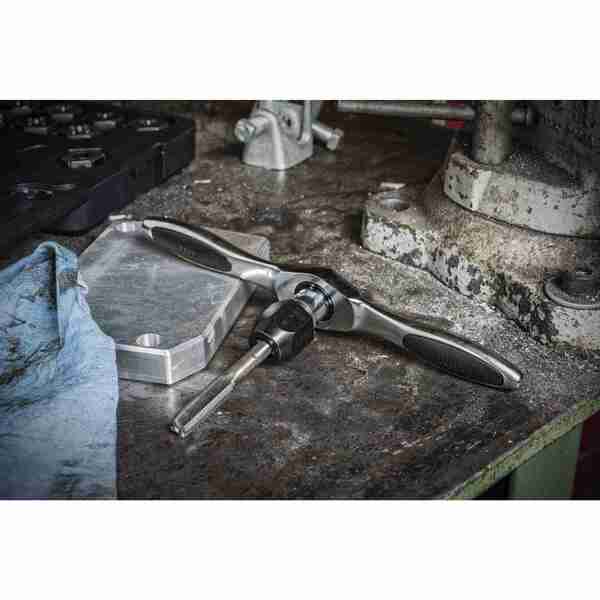

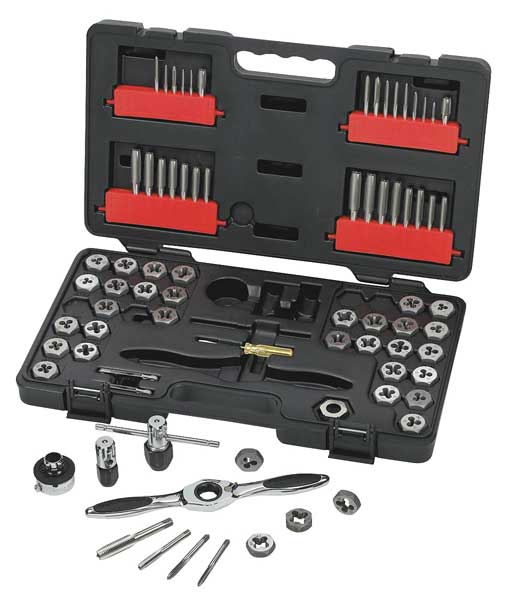

Ratcheting Tap and Die Set, 114 Piece, SAE/Metric

SKU
Brand Gearwrench
Categories
Description Tap and Die Set, Number of Pieces 114, Die Shape Hex, Die Material High Speed Steel
graingerSKU: 3KLR6, mscSKU: 72053002, zoro_no: G2655419, mongo_id: 65bbea5822d7a989a99aae0b

Web Price

$373.75 / each

Qty

Product Details

55% Thread Drill Size #13, #21, #3, #31, #32, #37, 1/2 in, 10.20mm, 10.90mm, 11.30mm, 11.80mm, 11/32 in, 12.50mm, 12.90mm, 13.25mm, 14.20mm, 14.50mm, 14.80mm, 14.90mm, 16.20mm, 16.90mm, 17.20mm, 17.90mm, 27/64 in, 3.50mm, 3.60mm, 3/32 in, 4.25mm, 4.40mm, 5.25mm, 5.70mm, 7.10mm, 8.40mm, 8.90mm, 9.10mm, 9/32 in, D, I, W

65% Thread Drill Size #23, #34, #38, #5, 1/2 in, 10.00mm, 10.50mm, 11.00mm, 11.60mm, 11/32 in, 12.50mm, 13.90mm, 13/64 in, 14.70mm, 16.90mm, 17.70mm, 17/64 in, 2.30mm, 21/32 in, 27/64 in, 3.00mm, 3.40mm, 3.50mm, 31/64 in, 33/64 in, 37/64 in, 4.15mm, 4.30mm, 4.60mm, 5/8 in, 7/32 in, 8.90mm, 9/16 in, C, I, J, P, R, V

75% Thread Drill Size #21, #25, #36, #7, 10.30mm, 10.50mm, 11.40mm, 11/32 in, 12.00mm, 12.20mm, 12.50mm, 12.90mm, 13.60mm, 14.00mm, 14.50mm, 15.50mm, 16.50mm, 17.50mm, 2.20mm, 2.50mm, 2.90mm, 27/64 in, 3.30mm, 3.40mm, 4.20mm, 4.45mm, 5.00mm, 5.45mm, 5/16 in, 6.00mm, 8.50mm, 9.95mm, F, H, I, U

Case Type Plastic

Country of Origin (subject to change) Taiwan, Province of China

Cutting Sizes 48

Die Finish Bright (Uncoated)

Die Material High Speed Steel

Die Material Grade Carbon Steel

Die Shape Hex

Die Type 5/8 in and 1 in Hex

Drill Bit Size #16, #21, #26, #29, #3, #36, #43, #7, 10.20mm, 11/16 in, 12.00mm, 14.00mm, 14.50mm, 15.50mm, 16.50mm, 17/32 in, 2.50mm, 2.90mm, 21/32 in, 25/64 in, 27/64 in, 29/64 in, 3.30mm, 3.70mm, 31/64 in, 33/64 in, 37/64 in, 4.20mm, 5.00mm, 5/16 in, 6.00mm, 6.70mm, 8.50mm, 8.70mm, F, I, Q, U

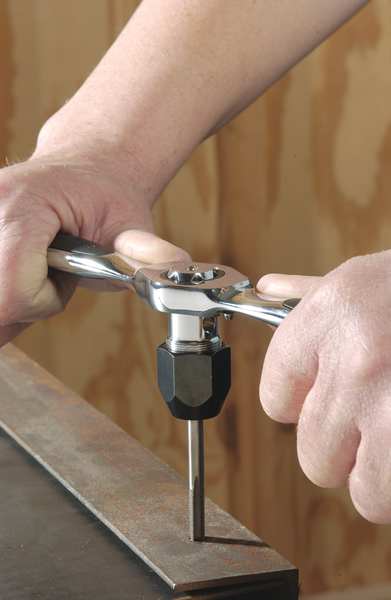

Features Auto-Locking, Eliminate Hand-Over-Hand Turning, Spring-Loaded Cap, Twist Lock Guide System Reduces The in Walk Back in

Finish Uncoated

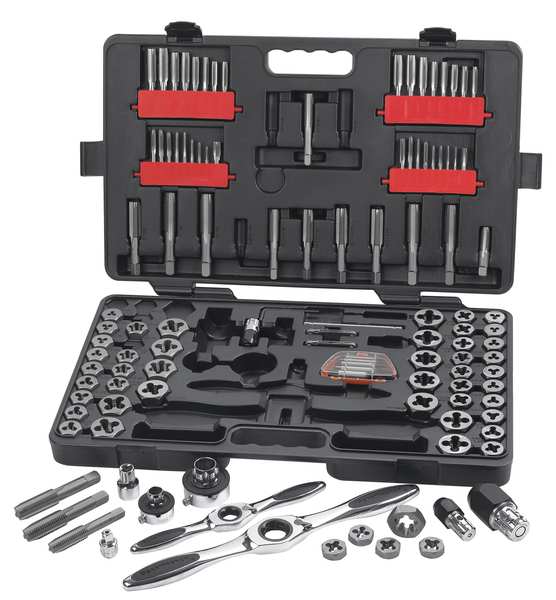

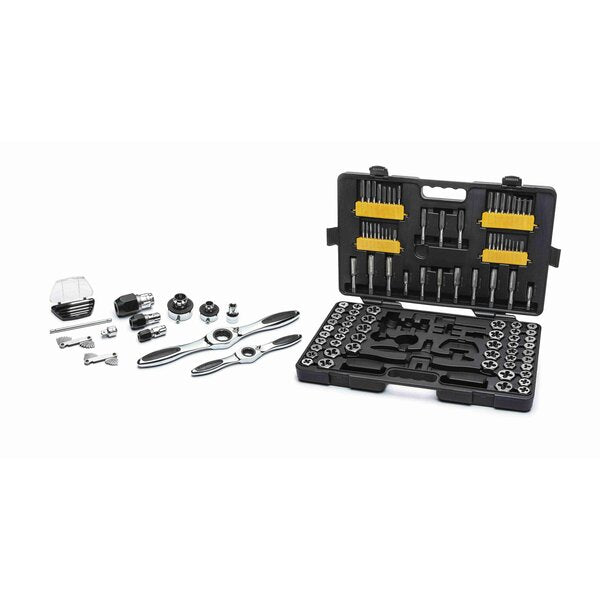

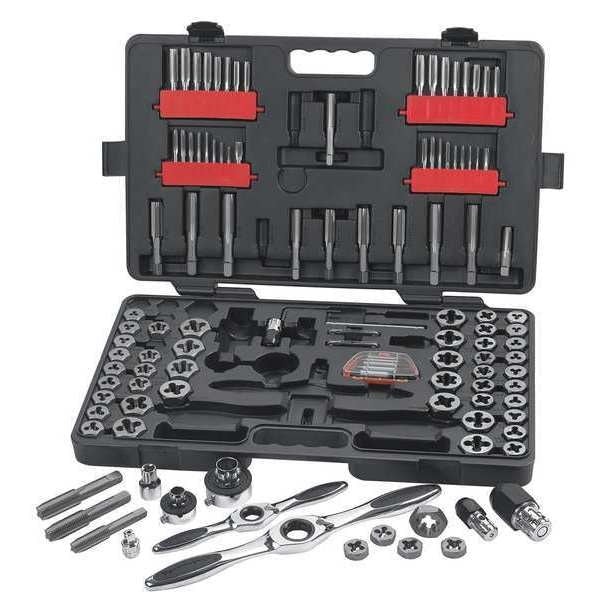

Includes Large And Medium Ratcheting T-Handle Wrenches, 3 Tap Adapters, Medium And Large Die Adapters, Male And Female Extension Adapters, Sliding-T for Adapters, 4mm Hex Key, 5 Screw Extractors, Thread Gauge, Plastic Case

Material Carbon Steel

Max. Die Thread Size M18x2.5

Max. Tap Thread Size M18x2.50

Measurement System Fractional Inch, Metric

Min. Bore Dia. 3mm x 0.50 NC

Min. Tap Thread Size M3x0.5

Number of Dies in Set 48

Number of Pieces 114

Number Of Taps 48

Package Quantity 1

SAE or Metric SAE, Metric

Size Range #4 to 3/4, M3 to M18

Size/Range #4 to 3/4, M3 to M18

Sizes Included #4-40, #6-32, #8-32, #10-24, #10-32, #12-24, 1/4-20, 1/4-28, 5/16-18, 5/16-24, 3/8-16, 3/8-24, 7/16-14, 7/16-20, 1/2-13, 1/2-20, 9/16-12, 9/16-18, 5/8-11, 5/8-18, 3/4-10, 3/4-16, M3x0.5, M3x0.6, M4x0.7, M4x0.75, M5x0.8, M5x0.9, M6x0.1, M7x0.1, M8x1.25, M9x1, M9x1.25, M10x1.25, M10x1.5, M11x1.5, M12x1.5, M12x 1.75, M14x1.25, M14x2, M16x1.5, M16x2, M18x1.5, M18x2.5, 1/8-27 NPT, 1/4-18 NPT, 1/8-28 BSP, 1/4-19 BSP

Standards ASME/ANSI B94.9-1999

Tap Chamfer Plug, Taper

Tap Dimension Type Inch, Machine, Metric

Tap Finish Bright (Uncoated)

Tap Material High Speed Steel

Thread Direction Right Hand

Thread Pitch 0.50mm , 0.60mm, 0.70mm, 0.75mm, 0.80mm, 0.90mm, 1.00mm, 1.25mm, 1.50mm, 1.75mm

Thread Sizes Included 1/2-13, 1/2-20, 1/4-18NPT, 1/4-19BSP, 1/4-20, 1/4-28, 1/8-27NPT, 1/8-28 BSP, 10-24, 10-32, 12-24, 3/4-10, 3/4-16, 3/8-16, 3/8-24, 4-40, 5/16-18, 5/16-24, 5/8-11, 5/8-18, 6-32, 7/16-14, 7/16-20, 8-32, 9/16-12, 9/16-18, M10 x 1.25, M10 x 1.50, M11 x 1.50, M12 x 1.50, M12 x 1.75, M14 x 1.25, M14 x 2.00, M16 x 1.50, M16 x 2.00, M18 x 1.50, M18 x 2.50, M3 x 0.50, M3 x 0.60, M4 x 0.70, M4 x 0.75, M5 x 0.80, M5 x 0.90, M6 x 1.00, M7 x 1.00, M8 x 1.25, M9 x 1.00, M9 x 1.25

Thread Standard Metric, SAE

Thread Type Metric, NPT

Threads per Inch 13, 14, 16, 18, 19, 20, 24, 27, 28, 32, 40

Type Fractional/Metric, Ratcheting
