Home / Data LAN Cable, 23 AWG, 1,000 ft L

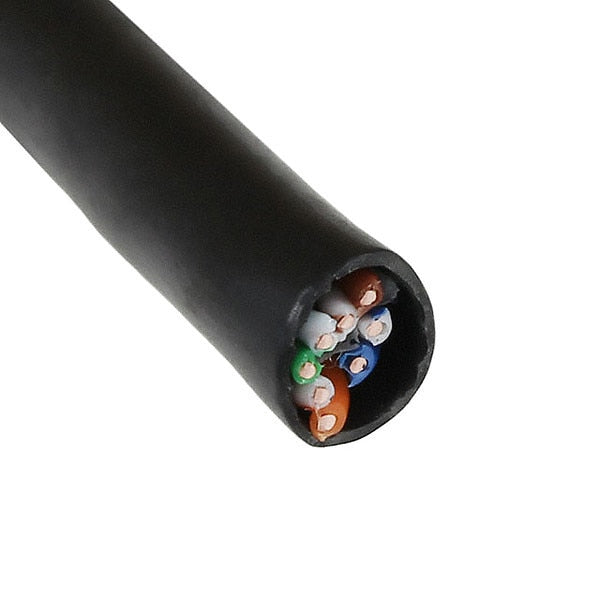

Data LAN Cable, 23 AWG, 1,000 ft L

SKU
Brand Genspeed
Categories
Description Data LAN Cable, Cable Length 1,000 ft, Conductor Gauge 23 AWG, Fire Rating Not Rated, Jacket Color Black, Jacket Material PE, Outside Diameter 1/4 in, Performance Category 6, Shielded Unshielded, Number of Conductors 8, Number of Pairs 4, NEC Article and Type 800 CMR, Standards ANSI/TIA 568-C.2 ISO 11801, ICEA S-102-700, RoHS Compliant Directive (2002/95/EC), Telcordia (Bellcore) Specification GR-421-CORE Water Penetration Requirements, Package Type Spool, Solid/Stranded Solid, Bend Radius 1 in

Web Price

$206.24 / each

Qty

Product Details

Bend Radius 1 in

Cable Length 1,000 ft

Conductor Gauge 23 AWG

Country of Origin (subject to change) United States

Fire Rating Not Rated

Insulation Material Polyolefin

Jacket Color Black

Jacket Material PE

Maximum Frequency 250 MHz

Maximum Impedance 100 ohm

Maximum Operating Temperature 176 Degrees F

Minimum Operating Temperature -49 Degrees F

NEC Article and Type 800 CMR

Number of Conductors 8

Number of Pairs 4

Outside Diameter 1/4 in

Package Quantity 1

Package Type Spool

Performance Category 6

Pulling Force 32 lb

Resistance Properties Scratch Resistant, UV Resistant

Shielded Unshielded

Solid/Stranded Solid

Standards ANSI/TIA 568-C.2 ISO 11801, ICEA S-102-700, RoHS Compliant Directive (2002/95/EC), Telcordia (Bellcore) Specification GR-421-CORE Water Penetration Requirements
