Home / Direct Drive Blower Motor, 1/2HP, ECM, 460V

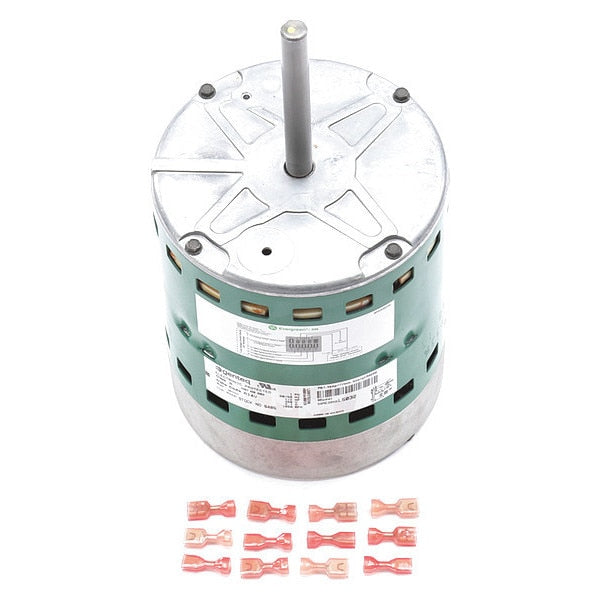

Direct Drive Blower Motor, 1/2HP, ECM, 460V

SKU
Brand Genteq
Categories
Description Direct Drive Blower Motor, Single Phase, Motor Design ECM, 1/2 HP, Nameplate RPM 1,075, No. of Speeds 5, Voltage 460V AC, Full Load Amps 2.01 A, 48 Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection None, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CWSE, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Lead Length 42 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Face, Motor Mounting Position Vertical Shaft Down, Number of Shafts 1
graingerSKU: 48ZJ35, mscSKU: , zoro_no: G4313876, mongo_id: 65bbe83a22d7a989a98e2668

Web Price

$656.24 / each

Qty

Product Details

Application Condenser or Evaporator Fan Motor

Body Dia. 5 5/8 in

Bolt Circle Dia. 5 3/8 in

Capacitor Required No

Country of Origin (subject to change) Mexico

Duty Continuous

Duty Cycle Continuous

Frame 48

Full Load Amps 2.01 A

HP_ 1/2

Hz_ 60 Hz

Includes Belly Band

Ins. Class B

Lead Length 42 in

Length Less Shaft 6 5/8 in

Manufacturers Warranty Length 1 yr

Max. Ambient Temp. 40 Degrees C

Motor Application HVAC/R

Motor Bearings Ball

Motor Design ECM

Motor Enclosure Design Open Air-Over

Motor Frame Material Steel

Motor Mounting Position Vertical Shaft Down

Motor Mounting Type Face

Motor Service Factor 1

Motor Shaft Design Flat

Motor Shaft Rotation CWSE

Motor Sub Application Direct Drive Fan/Blower

Motor Thermal Protection None

Mounting Holes 4

Nameplate RPM 1,075

No. of Speeds 5

Number of Shafts 1

Overall Length 10 1/2 in

Package Quantity 1

Phase Single

RPM Range 1,001-1,100

Shaft Dia. 1/2 in

Shaft Length 3 15/16 in

Stud Quantity 4

Usable @ 200V No

Usable @ 208V No

Voltage 460V AC

Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC

Weight 14 lb
