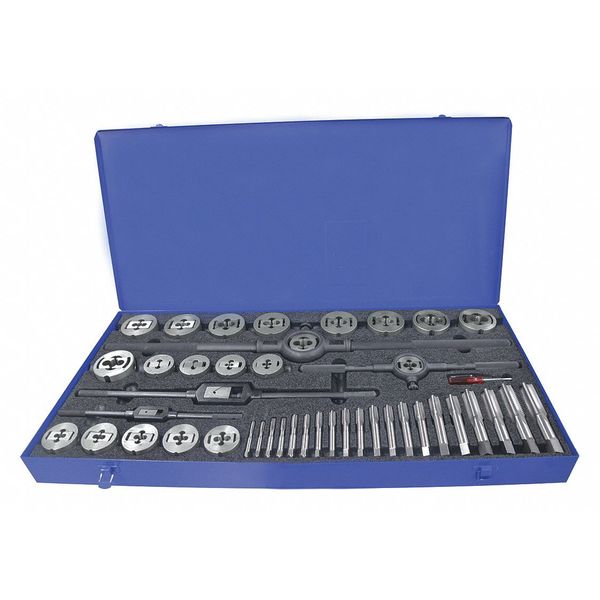

45PC Plug Hand Taps and Two-Piece Dies Set with Collet 7 Sizes, 1/4-20 To 1-14 UNC UNF & UNS

SKU
Brand Greenfield Threading
Categories
Description Tap and Die Set, Number of Pieces 45, Die Shape Round Adjustable, Tap Type Hand Tap, Die Material High Speed Steel, Thread Sizes Included 1 In.-14 NS, 1 In.-8 NC, 1/2 In.-13 NC, 1/2 In.-20 NF, 1/4 In.-20 NC, 1/4 In.-28 NF, 3/4 In.-10 NC, 3/4 In.-16 NF, 3/8 In.-16 NC, 3/8 In.-24 NF, 5/16 In.-18 NC, 5/16 In.-24 NF, 5/8 In.-11 NC, 5/8 In.-18 NF, 7/16 In.-14 NC, 7/16 In.-20 NF, 7/8 In.-14 NF, 7/8 In.-9 NC, 9/16 In.-12 NC, 9/16 In.-18 NF
graingerSKU: 445M60, mscSKU: , zoro_no: G4810561, mongo_id: 65bbe98f22d7a989a99632e0

Web Price

$4,774.99 / each

Product Details

55% Thread Drill Size #3, 1/2 in, 10.20mm, 11.30mm, 11.80mm, 11/32 in, 13.25mm, 14.20mm, 14.80mm, 17.20mm, 17.90mm, 20.90mm, 5.70mm, 51/64 in, 8.40mm, 9/32 in, I, W

65% Thread Drill Size #5, 10.00mm, 11.00mm, 11.60mm, 12.50mm, 13.90mm, 13/16 in, 16.90mm, 17.70mm, 17/64 in, 25/32 in, 33/64 in, 37/64 in, 7/32 in, J, P, R, V

75% Thread Drill Size #7, 11.40mm, 12.20mm, 12.90mm, 13.60mm, 14.50mm, 16.50mm, 17.50mm, 19.50mm, 20.40mm, 27/64 in, 5.45mm, 5/16 in, 8.50mm, 9.95mm, F, I, U

Case Type Metal

Class of Fit 2B

Coolant Fed Non-Coolant Through

Country of Origin (subject to change) India

Die Finish Bright (Uncoated)

Die Material High Speed Steel

Die Material Grade Carbon Steel

Die Series 380

Die Shape Round Adjustable

Die Thread Sizes Included 1-14 NS, 1-8 NC, 1/2-13 NC, 1/2-20 NF, 1/4-20 NC, 1/4-28 NF, 3/4-10 NC, 3/4-16 NF, 3/8-16 NC, 3/8-24 NF, 5/16-18 NC, 5/16-24 NF, 5/8-11 NC, 5/8-18 NF, 7/16-14 NC, 7/16-20 NF, 7/8-14 NF, 7/8-9 NC, 9/16-12 NC, 9/16-18 NF

Die Type 2-Piece

Dimensions Standard Fractional Inch

Extended Neck No

Extended Shank No

Extension Tap No

Features Self Alignment

Finish Bright

Finish - Machining Bright (Uncoated)

Helix Angle 0 Degrees

Includes Hand Taps, Carbon Two-Piece Dies and Collets, Tap Wrench, Die Stock

Material - Machining High Speed Steel

Max. Die Thread Size 1-14

Max. Tap Thread Size 1-14

Measurement System Fractional Inch

Min. Bore Dia. 1/4 in -20 NC

Min. Tap Thread Size 1/4-20

Number of Dies in Set 10

Number of Flutes 4

Number of Pieces 45

Number Of Taps 10

Package Quantity 1

Powdered Metal Base Material No

Primary Material Application All Materials

Primary Material Application ISO Code H, K, M, N, P, S

Secondary Material Application Stainless Steel

Secondary Material Application ISO Code M

Size Range 3/16 to 1

Sizes Included #1-14, #1-8, 7/8-14, 7/8-9, 3/4-16, 3/4-10, 5/8-18, 5/8-11, 9/16-18, 9/16-12, 1/2-20, 1/2-13, 7/16-20, 7/16-14, 3/8-24, 3/8-16, 5/16-24, 5/16-18, 1/4-28, 1/4-20, #5, 7/8, 3/4, 5/8, 9/16, 1/2, 7/16, 3/8, 5/16, 1/4, 7/8, 1/2-3/4, 3/8-1/2, 3/16-16

Spiral Direction Neutral

Standards ANSI

Tap Chamfer Plug

Tap Dimension Type Inch

Tap Finish Bright (Uncoated)

Tap Material High Speed Steel

Tap Material Grade M2

Tap Overall Length Table 302

Tap Series 411

Tap Shank Dia. Table 302

Tap Shank Standard Table 302

Tap Sizes Included 1 in -14 NS, 1 in -8 NC, 1/2 in -13 NC, 1/2 in -20 NF, 1/4 in -20 NC, 1/4 in -28 NF, 3/4 in -10 NC, 3/4 in -16 NF, 3/8 in -16 NC, 3/8 in -24 NF, 5/16 in -18 NC, 5/16 in -24 NF, 5/8 in -11 NC, 5/8 in -18 NF, 7/16 in -14 NC, 7/16 in -20 NF, 7/8 in -14 NF, 7/8 in -9 NC, 9/16 in -12 NC, 9/16 in -18 NF

Tap Type Hand Tap

Tap Wrench Number #5, #7

Thread Direction Right Hand

Thread Limit H3, H4

Thread Sizes Included 1-14 NS, 1-8 NC, 1/2-13 NC, 1/2-20 NF, 1/4-20 NC, 1/4-28 NF, 3/4-10 NC, 3/4-16 NF, 3/8-16 NC, 3/8-24 NF, 5/16-18 NC, 5/16-24 NF, 5/8-11 NC, 5/8-18 NF, 7/16-14 NC, 7/16-20 NF, 7/8-14 NF, 7/8-9 NC, 9/16-12 NC, 9/16-18 NF

Thread Standard UNC, UNF, UNS

Thread Type UNC, UNF, UNS

Threads per Inch 8, 9, 10, 11, 12, 13, 14, 18, 20, 24, 28
