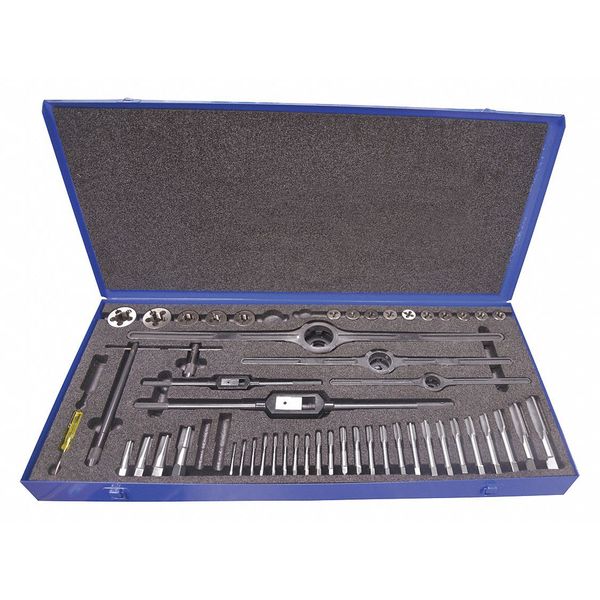

52PC Plug Hand Taps and Round Adjustable Dies Set #4-40 To 1-14 UNC UNF & UNS & 1/8-27NPT

SKU
Brand Greenfield Threading
Categories
Description Tap and Die Set, Number of Pieces 52, Die Shape Round, Tap Type Hand Tap, Die Material High Speed Steel, Thread Sizes Included #10-24 NC, #10-32 NF, #12-24 NC, #4-40 NC, #6-32 NC, #8-32 NC, 1-14 NS, 1/2-13 NC, 1/2-14 NPT, 1/2-20 NF, 1/4-18 NPT, 1/4-20 NC, 1/4-28 NF, 1/8-27 NPT, 3/4-16 NF, 3/8-16 NC, 3/8-18 NPT, 3/8-24 NF, 5/16-18 NC, 5/16-24 NF, 5/8-18 NF, 7/16-14 NC, 7/16-20 NF, 7/8-14 NF, 9/16-12 NC, 9/16-18 NF, M14 x 1.5, M18 x 1.5
graingerSKU: 445M57, mscSKU: , zoro_no: G4804401, mongo_id: 65bbe9db22d7a989a997ff04

Web Price

$2,278.74 / each

Product Details

55% Thread Drill Size #13, #21, #3, #32, 1/2 in, 10.20mm, 11.30mm, 11.80mm, 11/32 in, 14.20mm, 14.80mm, 17.90mm, 20.90mm, 3.60mm, 3/32 in, 4.25mm, 5.70mm, 8.40mm, I, W

65% Thread Drill Size #23, #34, #5, 10.00mm, 11.00mm, 11.60mm, 12.50mm, 13.90mm, 13/16 in, 17.70mm, 17/64 in, 2.30mm, 3.50mm, 37/64 in, 4.15mm, 4.60mm, 7/32 in, P, R, V

75% Thread Drill Size #21, #25, #36, #7, 11.40mm, 12.20mm, 13.60mm, 14.50mm, 17.50mm, 2.20mm, 20.40mm, 27/64 in, 3.40mm, 4.45mm, 5.45mm, 5/16 in, 8.50mm, 9.95mm, F, U

Case Type Metal

Class of Fit 2B

Coolant Fed Non-Coolant Through

Country of Origin (subject to change) United States

Die Finish Bright (Uncoated)

Die Material High Speed Steel

Die Material Grade Carbon Steel

Die Series 382

Die Shape Round

Die Thread Sizes Included 1-14 NS, 1/2-13 NC, 1/2-20 NF, 1/4-20 NC, 1/4-28 NF, 3/4-16 NF, 3/8-16 NC, 3/8-24 NF, 5/16-18 NC, 5/16-24 NF, 5/8-18 NF, 7/16-14 NC, 7/16-20 NF, 7/8-14 NF, 9/16-18 NF

Die Type Adjustable

Dimensions Standard Fractional Inch

Extended Neck No

Extended Shank No

Extension Tap No

Features General Purpose Applications

Finish Bright

Finish - Machining Bright (Uncoated)

Helix Angle 0 Degrees

Includes Hand Taps, Carbon Round Adjustable Dies

Material - Machining High Speed Steel

Max. Die Thread Size 1-14

Max. Tap Thread Size 1-14

Measurement System Fractional Inch

Min. Bore Dia. 1/4 in -20 NC

Min. Tap Thread Size 1/4-20

Number of Dies in Set 28

Number of Flutes 3, 4

Number of Pieces 52

Number Of Taps 15

Package Quantity 1

Powdered Metal Base Material No

Primary Material Application All Materials

Primary Material Application ISO Code H, K, M, N, P, S

Secondary Material Application Stainless Steel

Secondary Material Application ISO Code M

Size Range 1/8 to 1

Sizes Included 1/4-20, 1/4-28, 5/16-18, 5/16-24, 3/8-16, 3/8-24, 7/16-14, 7/16-20, 1/2-13, 1/2-20, 9/16-18, 5/8-18, 3/4-16, 7/8-14, 1-14, M14x1.5, M18x1.5, #4-40, #6-32, #8-32, #10-24, #10-32, #12-24, 1/8-27, 1/4-18, 3/8-18, 1/2-14

Spiral Direction Neutral

Standards ANSI

Tap Chamfer Plug, Taper

Tap Dimension Type Inch

Tap Finish Bright (Uncoated)

Tap Material High Speed Steel

Tap Material Grade M2

Tap Overall Length Table 302

Tap Series HTGP

Tap Shank Dia. Table 302

Tap Shank Standard Table 302

Tap Sizes Included #10-24 NC, #10-32 NF, #12-24 NC, #4-40 NC, #6-32 NC, #8-32 NC, 1-14 NS, 1/2-13 NC, 1/2-14 NPT, 1/2-20 NF, 1/4-18 NPT, 1/4-20 NC, 1/4-28 NF, 1/8-27 NPT, 3/4-16 NF, 3/8-16 NC, 3/8-18 NPT, 3/8-24 NF, 5/16-18 NC, 5/16-24 NF, 5/8-18 NF, 7/16-14 NC, 7/16-20 NF, 7/8-14 NF, 9/16-12 NC, 9/16-18 NF, M14 x 1.5, M18 x 1.5

Tap Type Hand Tap

Tap Wrench Number #5, #7, T16, T9

Thread Direction Right Hand

Thread Limit D6, H2, H3, H4

Thread Pitch 1.50mm

Thread Sizes Included #10-24 NC, #10-32 NF, #12-24 NC, #4-40 NC, #6-32 NC, #8-32 NC, 1-14 NS, 1/2-13 NC, 1/2-14 NPT, 1/2-20 NF, 1/4-18 NPT, 1/4-20 NC, 1/4-28 NF, 1/8-27 NPT, 3/4-16 NF, 3/8-16 NC, 3/8-18 NPT, 3/8-24 NF, 5/16-18 NC, 5/16-24 NF, 5/8-18 NF, 7/16-14 NC, 7/16-20 NF, 7/8-14 NF, 9/16-12 NC, 9/16-18 NF, M14 x 1.5, M18 x 1.5

Thread Standard NPT, UNC, UNF, UNS

Thread Type NPT, UNC, UNF, UNS

Threads per Inch 12, 13, 14, 16, 18, 20, 24, 27, 28, 32, 40
