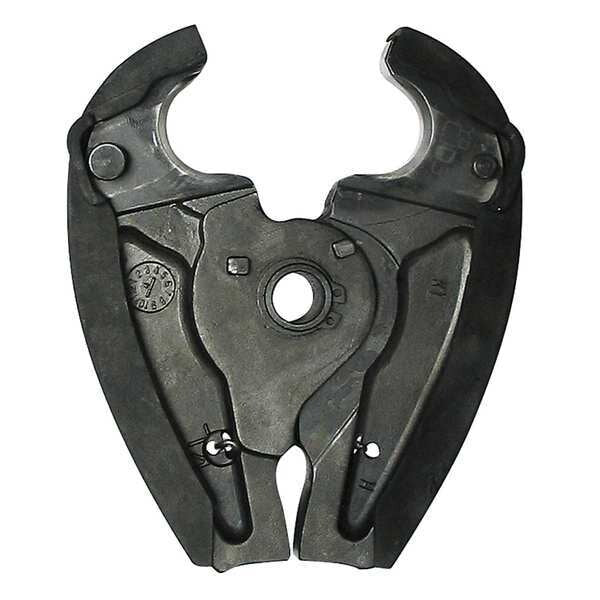

Crimping Jaw

SKU
Brand Greenlee
Categories
Description Crimping Jaw, Compatible Die Type D Die, Compatible with Brand Greenlee, Crimping Capacity 0.840, 1/0 to 4/0 AWG (Service Entrance Connectors), 10 to 1/0 AWG 5/8 in (Service Entrance Connectors), 10 to 2 AWG (Copper H Taps), 4 to 1/0 AWG (One Piece ACSR), 6 to 2/0 AWG (Copper Tension Splices), 6 to 4/0 AWG (All Aluminum Tension Splices), 6 to 4/0 AWG (Aluminum H Taps)
graingerSKU: 39D711, mscSKU: , zoro_no: G5607217, mongo_id: 65bbe8bc22d7a989a99125d1

Web Price

$906.24 / each

Qty

Product Details

Accessory Type Crimping Jaw

Compatible Die Type D Die

Compatible with Brand Greenlee

Country of Origin (subject to change) Germany

Crimping Capacity 0.840, 1/0 to 4/0 AWG (Service Entrance Connectors), 10 to 1/0 AWG 5/8 in (Service Entrance Connectors), 10 to 2 AWG (Copper H Taps), 4 to 1/0 AWG (One Piece ACSR), 6 to 2/0 AWG (Copper Tension Splices), 6 to 4/0 AWG (All Aluminum Tension Splices), 6 to 4/0 AWG (Aluminum H Taps)

Features In-Line Tool Style is Lightweight and Very Easy to Control, Intelligent Crimping System Technology Includes a Pressure Sensor that Monitors the Crimping Force of Each Crimp and Provides the Operator a Visual and Audible Alert If the Force is Below Specifications, it is Then Ready to Make the Next Crimp. And, When the Crimping Jaws Need to be Opened Before a Crimp is Complete, the Operator can Simply Push a Button on the Back Side of the Tool., LED Display Screen Communicating Pressure and Battery Levels as well as Tool Diagnostics with Real-Time Tool Feedback to Give the Lineman as Much Useful Data as Possible, The EK425LX is Operated with One Hand, Leaving the Other Hand Free to Position the Cable and Connector, The EK425LX will Complete About 325 Crimps Per Battery Charge on 4/0 AWG Splices, this Cable Crimper Comes Equipped with Bluetooth Communication Enabled Via the Greenlee Gator Eye App., to Help Prepare for a Crimp, the Jaws can be Jogged Closed Until They Just Grip the Connector, Allowing the Operator to Position the Cable in the Connector Before Finishing the Crimp, When a Crimp is Fully Completed, the EK425LX Signals the Operator by Automatically Opening the Jaws

For Use With Mfr. No. Greenlee LP6 Crimping Tool

Maximum Crimping Force 12,000 lb

Minimum Aluminum Lug Crimping Capacity 6 AWG

Minimum Copper Lug Crimping Capacity 6 AWG

Package Quantity 1

Product Type Crimping Jaw

Size .840 Service Entrance Connectors 1/0-4/0 AWG, 5/8 in Service Entrance Connectors 10-1/0 AWG, All Aluminum Tension Splices 6 - 4/0 AWG, Aluminum H Taps 6 -4/0 AWG, Aluminum Color-Code Lugs and Splices 8 - 4/0 AWG, Aluminum Jumper Splices 4 AWG - 266.8 kcmil, Copper H Taps 10 - 2 AWG, Copper Tension Splices 6 - 2/0 AWG, One Piece ACSR Tension Splices 4 - 1/0 AWG, Stirrups 2 - 4/0 AWG, Two Piece ACSR Tension Splices 2 AWG - 477 kcmil

Tool Length 18 1/2 in
