Home / Heavy Duty Power Chuck, 3/4 in. Hole Dia.

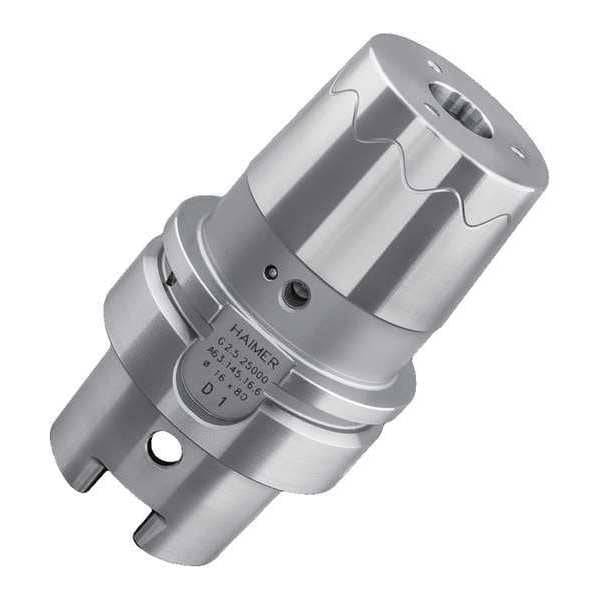

Heavy Duty Power Chuck, 3/4 in. Hole Dia.

SKU
Brand Haimer
Categories
Description Shrink Fit Tool Holder, Hole Dia. 3/4 in, Taper Size HSK63A, Projection 3.1500 in, Nose Dia. 1.8100 in, Coolant Fed Coolant Through, Balanced to RPM 25,000, For Use With Carbide and HSS Tools
graingerSKU: 46LZ75, mscSKU: , zoro_no: G3742746, mongo_id: 65bbe7859a749db8227417ee

Web Price

$1,496.24 / each

Qty

Product Details

Balanced to RPM 25,000

Compatible with Product Type Inductive Shrink Fit Units

Coolant Fed Coolant Through

Coolant Through Yes

Country of Origin (subject to change) Germany

Features Dirt Groove in the Clamping Bore for Safe Clamping Force, Expansion Grooves in the Clamping Bore, Extremely Rigid Outer Geometry, Heavy Duty, High Runout Accuracy: Less Than 3 mm, Reinforced Wall Thickness at the Clamping Range, Standard with Cool Jet (Can be Re-Sealed)

For Use With Carbide and HSS Tools

Hole Dia. 3/4 in

List Number A63.145

Nose Dia. 1.8100 in

Package Quantity 1

Projection 3.1500 in

Projection Gage Line to Nose End 3.15

Standards DIN 69893-1

Taper Size HSK63A

Tool Depth 2.0800 in
