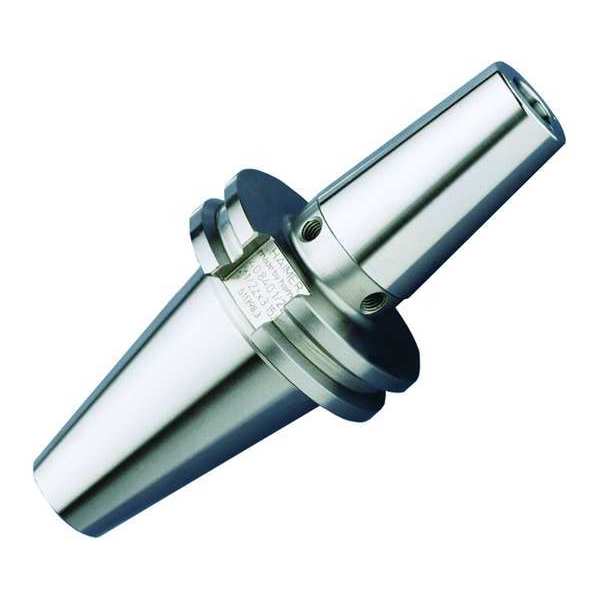

Power Shrink Chuck, 10mm Hole Dia., CAT40

SKU
Brand Haimer
Categories
Description Shrink Fit Tool Holder, Hole Dia. 10.00mm, Taper Size CV40, Projection 160.00 mm, Nose Dia. 24.00mm, Coolant Fed Coolant Through, Balanced to RPM 25,000, For Use With Carbide and HSS Tools
graingerSKU: 46LM17, mscSKU: , zoro_no: G3753228, mongo_id: 65bbee24526e052139af21f8

Web Price

$1,759.99 / each

Qty

Product Details

Balanced to RPM 25,000

Compatible with Product Type All Inductive Shrink Fit Units

Coolant Fed Coolant Through

Coolant Through Yes

Country of Origin (subject to change) Germany

Features Dirt Groove in the Clamping Bore for Safe Clamping Force, High Runout Accuracy: Less Than 0.003 mm, Low Tendency Towards Vibrations by Optimized Outer Geometry, Slim Design at the Top, Very Rigid Shank

For Use With Carbide and HSS Tools

Hole Dia. 10.00mm

List Number 40.842

Nose Dia. 24.00mm

Package Quantity 1

Projection 160.00 mm

Projection Gage Line to Nose End 160.00mm

Standards ASME B5.50

Taper Size CV40

Tool Depth 24.00mm
