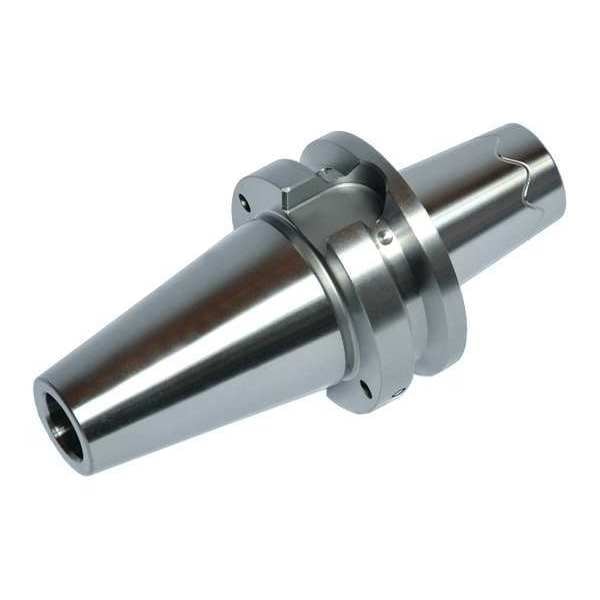

Power Shrink Chuck, 1/4 in. Hole Dia, BT40

SKU
Brand Haimer
Categories
Description Shrink Fit Tool Holder, Hole Dia. 1/4 in, Taper Size BT40, Projection 2.7600 in, Nose Dia. 0.8700 in, Coolant Fed Coolant Through, Balanced to RPM 25,000, For Use With Carbide and HSS Tools
graingerSKU: 46LL03, mscSKU: , zoro_no: G3754357, mongo_id: 65bbe7da9a749db82275e223

Web Price

$1,009.99 / each

Qty

Product Details

Balanced to RPM 25,000

Compatible with Product Type All Inductive Shrink Fit Units

Coolant Fed Coolant Through

Coolant Through Yes

Country of Origin (subject to change) Germany

Features Dirt Groove in the Clamping Bore for Safe Clamping Force, Expansion Grooves in the Clamping Bore, Extremely Rigid Outer Geometry, High Runout Accuracy: Less Than 3 mm, Reinforced Wall Thickness at the Clamping Range, Standard with Cool Jet (Can be Re-Sealed)

For Use With Carbide and HSS Tools

Hole Dia. 1/4 in

List Number 40.645

Nose Dia. 0.8700 in

Package Quantity 1

Projection 2.7600 in

Projection Gage Line to Nose End 2.76

Standards JIS B 6339

Taper Size BT40

Tool Depth 1.4200 in
