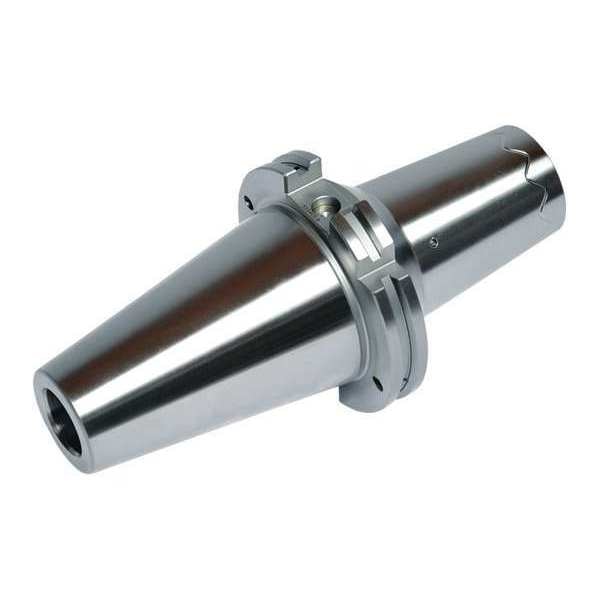

Power Shrink Chuck, 1/4 in Hole Dia, CAT50

SKU
Brand Haimer
Categories
Description Shrink Fit Tool Holder, Hole Dia. 1/4 in, Taper Size CV50, Projection 7.8700 in, Nose Dia. 53/64 in, Coolant Fed Coolant Through, Balanced to RPM 25,000, For Use With Carbide and HSS Tools
graingerSKU: 46LU46, mscSKU: , zoro_no: G3747987, mongo_id: 65bbe82b22d7a989a98dece4

Web Price

$2,272.49 / each

Qty

Product Details

Balanced to RPM 25,000

Compatible with Product Type All Inductive Shrink Fit Units

Coolant Fed Coolant Through

Coolant Through Yes

Country of Origin (subject to change) Germany

Features Dirt Groove in the Clamping Bore for Safe Clamping Force, High Runout Accuracy: Less Than 0.003 mm, Low Tendency Towards Vibrations by Optimized Outer Geometry, Slim Design at the Top, Very Rigid Shank

For Use With Carbide and HSS Tools

Hole Dia. 1/4 in

List Number 50.846

Nose Dia. 53/64 in

Package Quantity 1

Projection 7.8700 in

Projection Gage Line to Nose End 7.87

Standards ASME B5.50

Taper Size CV50

Tool Depth 1.4200 in
