Home / Power Shrink Chuck, 20mm Hole Dia., CAT40

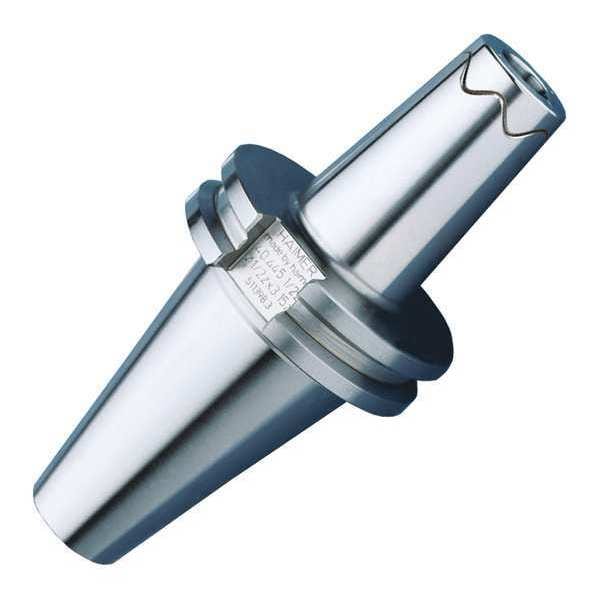

Power Shrink Chuck, 20mm Hole Dia., CAT40

SKU
Brand Haimer
Categories
Description Shrink Fit Tool Holder, Hole Dia. 20.00mm, Taper Size CV40, Projection 65.00 mm, Nose Dia. 35.50mm, Coolant Fed Coolant Through, Balanced to RPM 25,000, For Use With Carbide and HSS Tools
graingerSKU: 46LM99, mscSKU: , zoro_no: G3752406, mongo_id: 65bbe85622d7a989a98ed1d0

Web Price

$1,404.99 / each

Qty

Product Details

Balanced to RPM 25,000

Compatible with Product Type All Inductive Shrink Fit Units

Coolant Fed Coolant Through

Coolant Through Yes

Country of Origin (subject to change) Germany

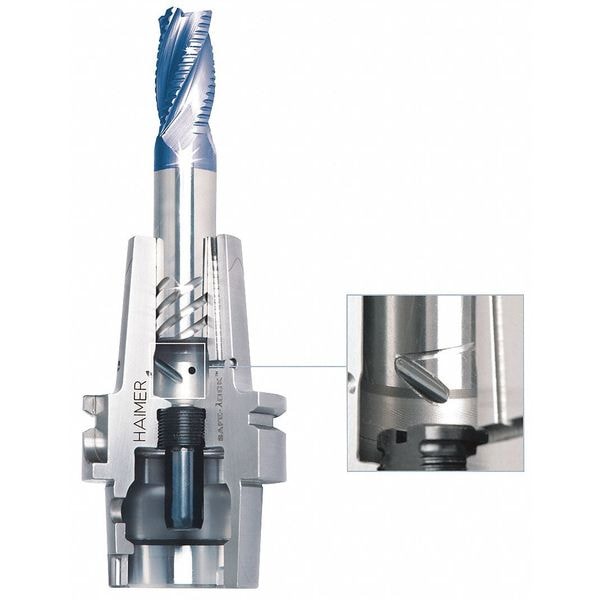

Features Dirt Groove in the Clamping Bore for Safe Clamping Force, High Runout Accuracy: Less Than 0.003 mm, Low Tendency Towards Vibrations by Optimized Outer Geometry, Slim Design at the Top, Very Rigid Shank

For Use With Carbide and HSS Tools

Hole Dia. 20.00mm

List Number 40.845

Nose Dia. 35.50mm

Package Quantity 1

Projection 65.00 mm

Projection Gage Line to Nose End 65.00mm

Standards ASME B5.50

Taper Size CV40

Tool Depth 52.00mm
