Home / Shrink Chuck, 10mm Hole Dia., HSK63A

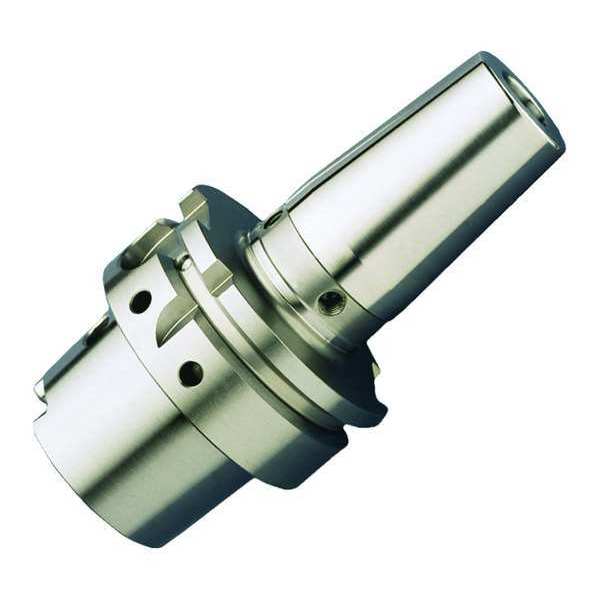

Shrink Chuck, 10mm Hole Dia., HSK63A

SKU
Brand Haimer
Categories
Description Shrink Fit Tool Holder, Hole Dia. 10.00mm, Taper Size HSK63A, Projection 200.00 mm, Nose Dia. 24.00mm, Coolant Fed Coolant Through, Balanced to RPM 25,000, For Use With Carbide and HSS Tools, Includes Backup Screw
graingerSKU: 46LZ89, mscSKU: , zoro_no: G3742606, mongo_id: 65bbe7903aaddbd5a90a11bf

Web Price

$1,543.74 / each

Qty

Product Details

Balanced to RPM 25,000

Compatible with Product Type Shrink Fit Units

Coolant Fed Coolant Through

Coolant Through Yes

Country of Origin (subject to change) Germany

Features Dynamic Form: Reinforced Shank at Long Tool Holders, Compromises Between Slimness (Marginal Interference Contour) and Rigidity, Extreme Clamping Torque by High Pressing in the Clamping Bore, High Runout Accuracy: Less Than 3 mm, Short Chamfer, Threaded Bores for Simple and Fast Balancing with Screws

For Use With Carbide and HSS Tools

Hole Dia. 10.00mm

Includes Backup Screw

List Number A63.146

Nose Dia. 24.00mm

Package Quantity 1

Projection 200.00 mm

Projection Gage Line to Nose End 200.00mm

Standards DIN 69893

Taper Size HSK63A

Tool Depth 42.00mm
