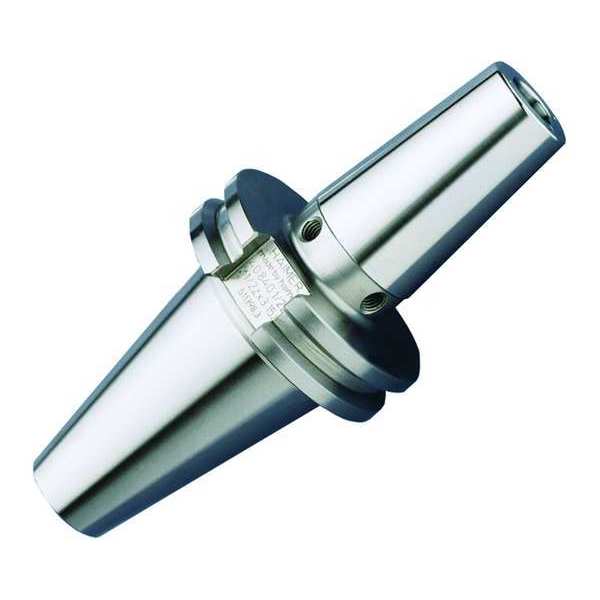

Shrink Chuck, 20mm Hole Dia., CAT40

SKU
Brand Haimer
Categories
Description Shrink Fit Tool Holder, Hole Dia. 20.00mm, Taper Size CV40, Projection 130.00 mm, Nose Dia. 33.00mm, Coolant Fed Coolant Through, Balanced to RPM 25,000, For Use With Carbide and HSS Tools
graingerSKU: 46LM69, mscSKU: , zoro_no: G3752701, mongo_id: 65bbe7fe22d7a989a98d0653

Web Price

$997.49 / each

Qty

Product Details

Balanced to RPM 25,000

Compatible with Product Type Shrink Fit Units

Coolant Fed Coolant Through

Coolant Through Yes

Country of Origin (subject to change) Germany

Features Dynamic Form: Reinforced Shank at Long Tool Holders, Compromises Between Slimness (Marginal Interference Contour) and Rigidity, Extreme Clamping Torque by High Pressing in the Clamping Bore, High Runout Accuracy: Less Than 3 mm, Short Chamfer, Threaded Bores for Simple and Fast Balancing with Screws

For Use With Carbide and HSS Tools

Hole Dia. 20.00mm

List Number 40.844

Nose Dia. 33.00mm

Package Quantity 1

Projection 130.00 mm

Projection Gage Line to Nose End 130.00mm

Standards ASME B5.50

Taper Size CV40

Tool Depth 52.00mm
