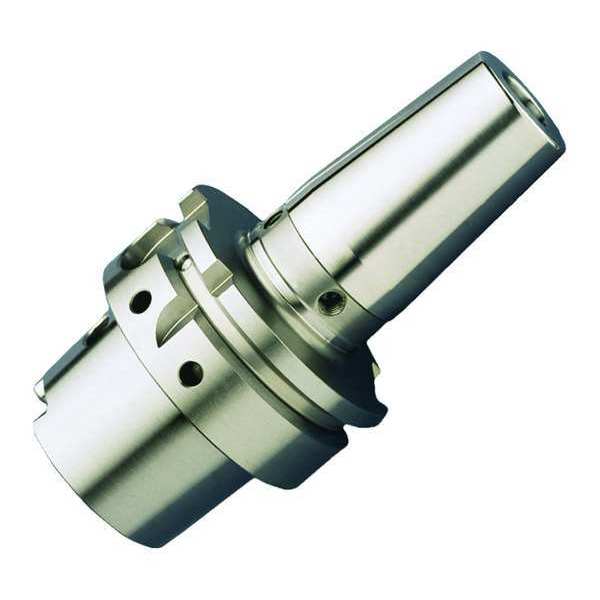

Shrink Chuck, 20mm Hole Dia., HSK63A

SKU
Brand Haimer
Categories
Description Shrink Fit Tool Holder, Hole Dia. 20.00mm, Taper Size HSK63A, Projection 160.00 mm, Nose Dia. 33.00mm, Coolant Fed Coolant Through, Balanced to RPM 25,000, For Use With Carbide and HSS Tools, Includes Backup Screw
graingerSKU: 46LY55, mscSKU: , zoro_no: G3743936, mongo_id: 65bbe7da9a749db82275e21a

Web Price

$1,261.24 / each

Qty

Product Details

Balanced to RPM 25,000

Compatible with Product Type Shrink Fit Units

Coolant Fed Coolant Through

Coolant Through Yes

Country of Origin (subject to change) Germany

Features Dynamic Form: Reinforced Shank at Long Tool Holders, Compromises Between Slimness (Marginal Interference Contour) and Rigidity, Extreme Clamping Torque by High Pressing in the Clamping Bore, High Runout Accuracy: Less Than 3 mm, Short Chamfer, Threaded Bores for Simple and Fast Balancing with Screws

For Use With Carbide and HSS Tools

Hole Dia. 20.00mm

Includes Backup Screw

List Number A63.142

Nose Dia. 33.00mm

Package Quantity 1

Projection 160.00 mm

Projection Gage Line to Nose End 160.00mm

Standards DIN 69893

Taper Size HSK63A

Tool Depth 52.00mm
