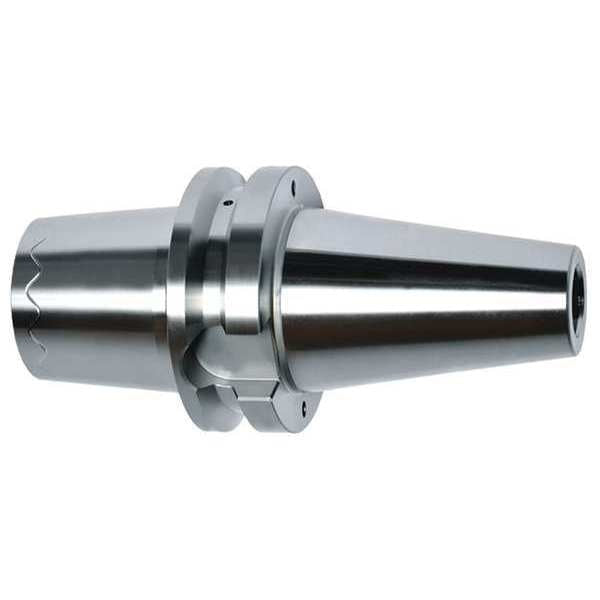

Shrink Fit Chuck, 32mm Hole Dia., BT50

SKU
Brand Haimer
Categories
Description Shrink Fit Tool Holder, Hole Dia. 32.00mm, Taper Size BT50, Projection 200.00 mm, Nose Dia. 70.00mm, Coolant Fed Coolant Through, Balanced to RPM 25,000, For Use With Carbide and HSS Tools
graingerSKU: 46LR94, mscSKU: , zoro_no: G3749481, mongo_id: 65bbe7da9a749db82275e229

Web Price

$2,837.49 / each

Qty

Product Details

Balanced to RPM 25,000

Compatible with Product Type Inductive Shrink Fit Units

Coolant Fed Coolant Through

Coolant Through Yes

Country of Origin (subject to change) Germany

Features Dirt Groove in the Clamping Bore for Safe Clamping Force, Expansion Grooves in the Clamping Bore, Extremely Rigid Outer Geometry, Heavy Duty, High Runout Accuracy: Less Than 0.003 mm, Reinforced Wall Thickness at the Clamping Range, Standard with Cool Jet (Can be Re-Sealed)

For Use With Carbide and HSS Tools

Hole Dia. 32.00mm

List Number 50.656

Nose Dia. 70.00mm

Package Quantity 1

Projection 200.00 mm

Projection Gage Line to Nose End 200.00mm

Standards JIS B 6339

Taper Size BT50

Tool Depth 61.00mm
