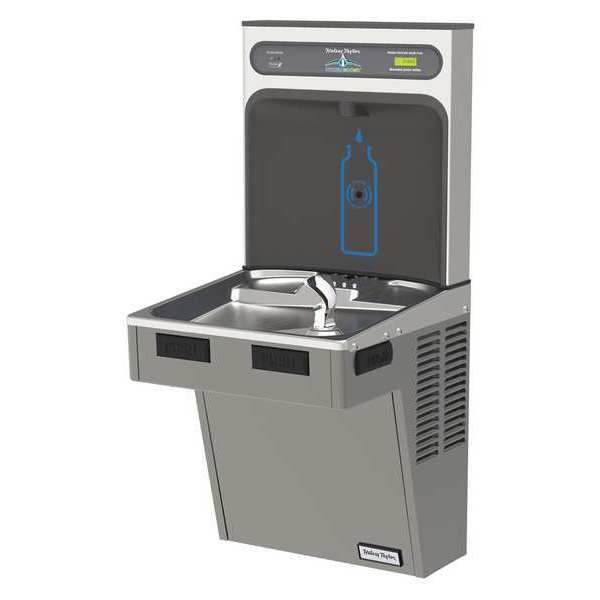

Home / Indoor, Wall Mount, Stainless Steel, Yes ADA

Indoor, Wall Mount, Stainless Steel, Yes ADA

SKU
Brand Halsey Taylor
Categories
Description Drinking Fountain with Bottle Filler, Station Type Bottle Filling Dispenser, Single Fountain, Fountain Actuation Front Pushbar/Side Pushbar, Bottle Dispenser Actuation Sensor, Includes Water Filter Yes, ADA Compliant Yes, Cooling Capacity 8 gph @ 50 Degrees F, Housing Color Silver, Housing Finish Plain, Overall Height 39 3/4 in, Overall Depth 18 1/2 in, Overall Width 17 7/8 in, Mounting Location Wall Surface Mount, Bi-Level Field Adjustable No, Includes Pet Bowl No, Refrigeration Refrigerated
graingerSKU: 6XUZ1, mscSKU: , zoro_no: G9003251, mongo_id: 65bbe7b23aaddbd5a90aeae0

Web Price

$2,652.49 / each

Qty

Product Details

ADA Compliant Yes

Antimicrobial Yes

Basin Material Stainless Steel

Bi-Level Field Adjustable No

Bottle Dispenser Actuation Sensor

Bottle Filler Actuation Touchless Bottle Filler

Bottle Filler Depth 3 5/8 in

Bottle Filler Width 17 7/8 in

Bubbler Finish Chrome Plated

Chilling Capacity 8 gph @ 50 Degrees F

Cold Water Capacity 8 gph

Color Silver

Compressor Horsepower 1/5 hp

Compressor HP 1/5 hp

Cooling Capacity 8 gph @ 50 Degrees F

Country of Origin (subject to change) United States

Depth 18 5/8 in

Dispenser Design Wall

Dispenser Operation Electronic Sensor (Bottle), Front and Side Pushbar (Fountain)

Drain Connection 1 1/4 in

Drain Outside Diameter 1 1/4 in

Drinking Fountain Operation Push Bar Fountain

Environment Indoor

Features Green Counter, Laminar Flow, Mechanically Activated, Real Drain, Visual Filter Monitor

Filter Status Indicator Yes

Fountain Actuation Front Pushbar/Side Pushbar

Fountain and Bottle Dispenser Operation Front Pushbar/Side Pushbar ; Sensor

Fountain and Bottle Filler Type Bottle Filling Dispenser, Single Fountain

Full Load Amps 4 A

Full Load Current 6 A

Height 39 1/8 in

Housing Color Silver

Housing Finish Plain

Housing Material Finish Silver Plain

Includes Filter

Includes Back Panel No

Includes Pet Bowl No

Includes Water Filter Yes

Indoor / Outdoor Indoor

Inlet 3/8 in OD

Manufacturer Warranty Length 1 yr Electrical Components, 1 yr Water System, 5 yr Refrigeration System

Manufacturers Warranty Length 5 yr on Refrigeration System, 1 yr Electrical Components and Water System

Maximum Cold Water Temperature 50 Degrees F

Maximum Constant Stream Pressure 105 psi

Minimum Constant Stream Pressure 20 psi

Minimum Supply Line Pressure 40 psi

Mounting Hole Diameter 7/16 in

Mounting Type On-Wall

Number of Bubblers 1

Number of Levels 1

Number of Mounting Holes 6

Operating Voltage 115V AC

Operation Push Bar Fountain, Touchless Bottle Filler

Overall Depth 18 1/2 in

Overall Height 39 3/4 in

Overall Width 17 7/8 in

Package Quantity 1

Plug Type Three Prong

Power Consumption 370 W

Power Source Electric Corded

Refrigerant 134A (Libre CFC)

Refrigerant Type R134A

Refrigerated Yes

Refrigerated / Non-Refrigerated Refrigerated

Refrigeration Refrigerated

Regulator Maintains Constant Stream Height at Line Pressures of 20 to 105 psi

Standards ADA and ICC A117.1, ASME A112.19.3/CSA B45.4, Buy American Act, CAN/CSA C22.2 No. 120, GreenSpec, NSF/ANSI 372, NSF/ANSI 42, NSF/ANSI 53, NSF/ANSI 61, UL 399

Station Type Bottle Filling Dispenser, Single Fountain

Temperature Adjustment Factory Set but Adjustable

Type Bottle Filler, Single Drinking Fountain

Vandal Resistant No

Voltage 115 V AC

Water Filter Included Filtered

Water Temp. 50 Degrees F

Width 18 in
