Home / Swivel Pnumatic Caster w/ Brake Lock, 8''

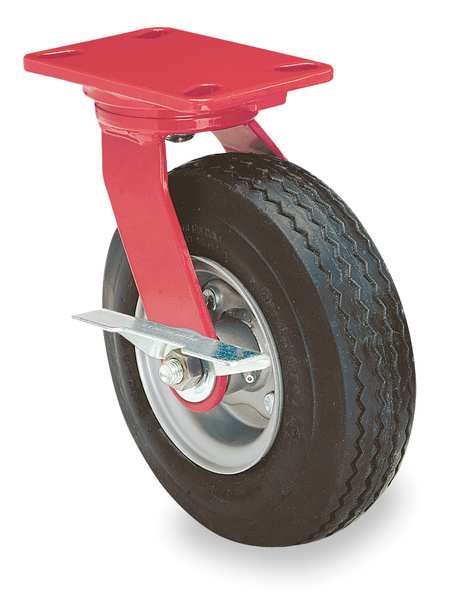

Swivel Pnumatic Caster w/ Brake Lock, 8''
Swivel Pnumatic Caster w/ Brake Lock, 8''
Swivel Pnumatic Caster w/ Brake Lock, 8''
Swivel Pnumatic Caster w/ Brake Lock, 8''

Swivel Pnumatic Caster w/ Brake Lock, 8''

  • Hamilton
  • Material Handling

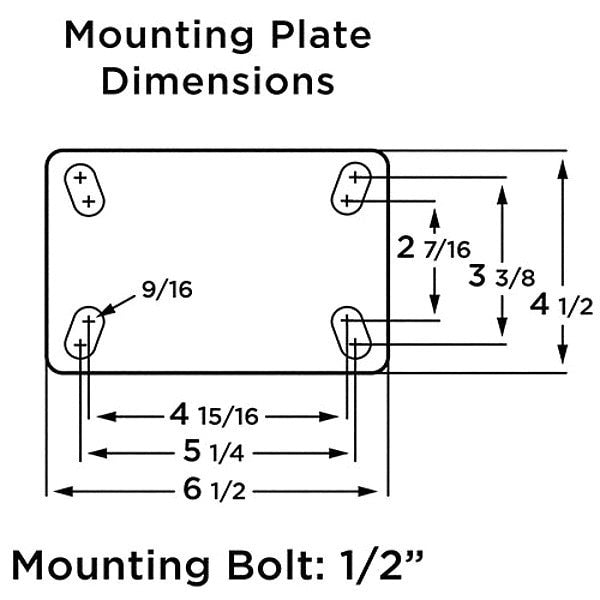

  • Plate Caster with Pneumatic Wheels, Load Rating Range 300 to 999 lb, Load Rating 330 lb, Tread Sawtooth, Wheel Dia. 8 in, Wheel Width 2 1/2 in, Inside Bolt Hole Spacing 2-7/16 in x 4-15/16 in, Outside Bolt Hole Spacing 3-3/8 in x 5-1/4 in, Caster Brake Type Swivel Lock with Side Pedal Brake, Caster Product Group Swivel Caster with Four Position Swivel Lock, Caster Sub-Type Swivel, Operating Temperature Range -30 Degrees to 120 Degrees F, Non-Marking No, Wheel/Tread Material Rubber

    graingerSKU: 36T698, mscSKU: , zoro_no: G6183143, mongo_id: 65bbe5943aaddbd5a9fd219e

Web Price
$262.49 / each
Qty

Product Details

Swivel Lock with Side Pedal Brake
Steel
Medium-Duty
Plate
A
Swivel Caster with Four Position Swivel Lock
Single Ball
Swivel
-30 Degrees to 120 Degrees F
Yes
Ball
Pneumatic
Multiple
Enamel
Forged Steel
Black
Steel
Symmetrical
3
No
2-7/16 in x 4-15/16 in
330 lb
300 to 999 lb
1/2 in
10 5/8 in
A
4-1/2 in x 6-1/2 in
No
4
1
-30 Degrees to 120 Degrees F
3-3/8 in x 5-1/4 in
10-5/8
1
A
4-1/2 x 6-1/2
5/16
4
Kingpin
Single Ball
4 in
Sawtooth
Black
Precision Ball
8 in
2 1/2 in
60 Shore A
Soft
Rubber
