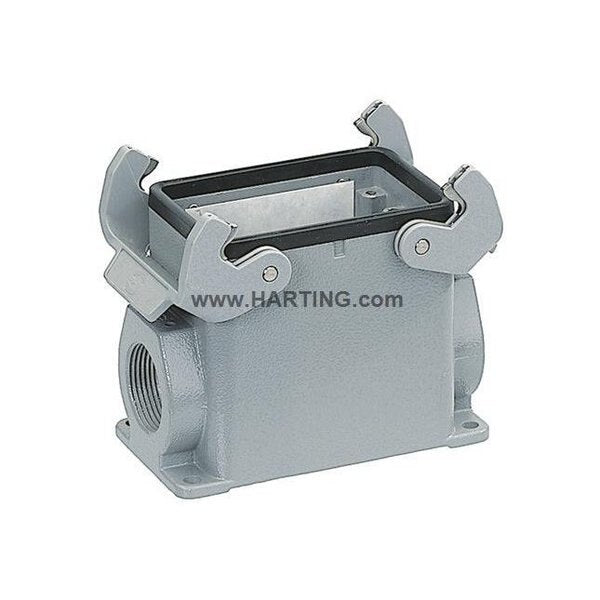

Rectangular Connector Housing, 81.8 mm H

SKU
Brand Harting
Categories
Description HAEL 19200320232 HOUSING
graingerSKU: null, mscSKU: null, zoro_no: G605286134, mongo_id: 65bbe6a93aaddbd5a904586e

Web Price

$78.11 / each

Qty

Product Details

(hidden) product type builder Housing 19200320232

Application Industrial

Attachment Type Double Lever

Cable Entry Thread Size M32

Color Gray

Country of Origin (subject to change) Germany

Cover Provision Without Cover

Dimensions HxWxL: 3.22x1.81x4.17 (81.8x46.0x106.0mm)

Dimensions (L x W x H) 114.1 mm x 57 mm x 81.8 mm

Entry Location Side

Entry Position - Quantity Side (1)

Entry Size 0.75 in NPT

Entry Type Single-Entry

Finish Powder Coated

Flammability Rating UL 94 V-0

Height 81.8 mm

Housing Color Gray

Housing/Hood Material Aluminum Die-Cast

Housing/Hood Size Designation 32 A

IP Rating IP65

Length 114.1 mm

Levers and Bolts Material Polycarbonate; Stainless Steel

Locking Type Dual Lever

Material Aluminium

Material, Attachments Zinc Plated Steel

Material, Housing Die Cast Aluminum

Max. Temp. 125ÃÂ°C

Maximum Operating Temperature 125 Degrees C

Minimum Operating Temperature -40 Degrees C

Mounting Code-Series Size A32

Mounts To Double Lever Base

Number of Entries 1

Operating Temperature Range -40 to 125 Degrees C

Package Quantity 1

Primary Material Aluminum

Product Type Housing

Seal Material NBR

Series Han(R) A

Size Designation 32 A

Standards California Proposition 65, CE Certified, China RoHS, CSA-C22.2 No. 18.3 QCRV7.E479780, DNV GL, ELV Compliant, REACH SVHC, RoHS Complaint, UL 514B QCRV.E479780

Sub-Category Hoods/Housings

Type Housing

Width 57 mm
