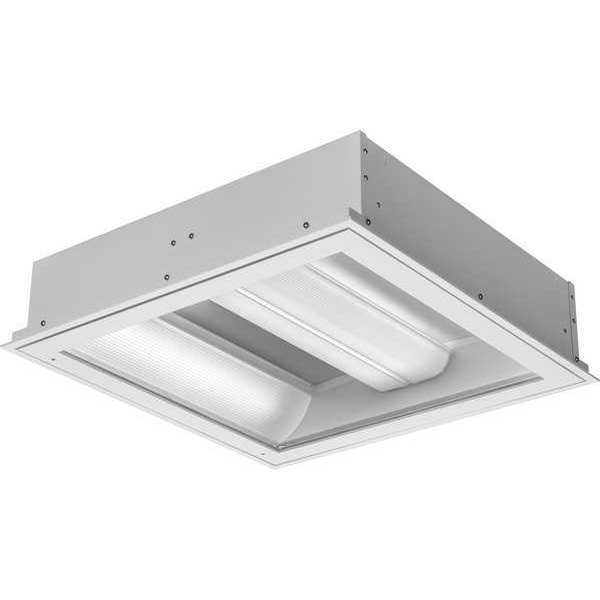

Home / Lamp, 3 Lamp T8 32W

Lamp, 3 Lamp T8 32W

SKU
Brand Healthcare Lighting
Categories
Description 2 ft x 2 ft, Lens Shape Curved, 3500K, 2,132 lm, 6,008 lm, 74 lm/W, 88 lm/W, LED, LED Replacement For 7 Lamp T8, Bulb Included Integrated LED, For Bulb Type Integrated LED, Lamp Quantity Not Applicable, Fixture Ballast Type No Ballast Required, Max. Fixture Wattage 68.3 W, Color Rendering Index 80, 120V, Lighting Certification Unrated, Dimmable Yes, Emergency Battery Backup No, Series HPT822
graingerSKU: , mscSKU: , zoro_no: G801109190, mongo_id: 65bbe5f93aaddbd5a9ffbd5e

Web Price

$1,727.49 / each

Qty

Product Details

Ballast Start Type No Ballast

Bulb Included Integrated LED

Ceiling Mount Type Grid Mount

Color Rendering Index 80

Color Temperature 3500K

Controller Type Low voltage digital controller, 4 position sequential switching

Country of Origin (subject to change) United States

Dimmable Yes

Dimming Method 0-10V

Dimming Range 100% to 1%

Emergency Battery Backup No

Finish Matte, Powder Coated

Fixture Ballast Type No Ballast Required

For Bulb Base Type Integrated LED

For Bulb Type Integrated LED

For Max. Bulb Wattage 68.3 W

Housing Color White

Housing Gauge 20 ga

Housing Material Steel

IP Rating Not Rated

Lamp Quantity Not Applicable

LED Replacement For 7 Lamp T8

Lens Material Acrylic

Lens Shape Curved

Lens Thickness 0.125 in

Lens Type Perforated

Light Technology LED

Lighting Certification Unrated

Lighting Technology LED

Lumens 2,132 lm, 6,008 lm

Lumens per Watt 74 lm/W, 88 lm/W

Max. Ambient Temp. 77 Degrees F

Max. Fixture Wattage 68.3 W

Min. Ambient Temp. 35 Degrees F

Nominal Size 2 ft x 2 ft

Overall Bulb Shape LED

Overall Height 5 3/4 in

Overall Length 23 3/4 in

Overall Width 23 3/4 in

Package Quantity 1

Rated Life 65,000 hr

Series HPT822

Standards CSA Certified to meet US and Canadian standards, This product is assembled in the USA and meets the Buy America(n) government procurement requirements under FARS, DFARS and DOT.

Switching Level Tri-Level

Voltage 120V

Warranty 5 yr
