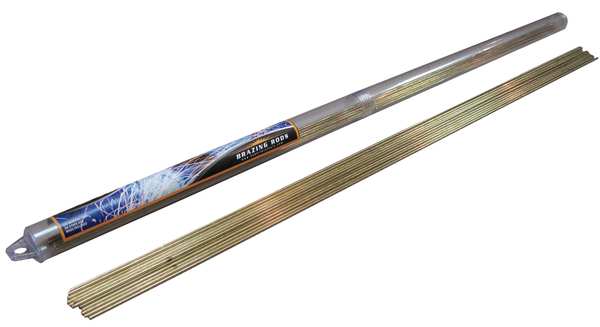

Brazing Alloy, General Purp LFB, 1/8, 3lb

SKU
Brand Hobart Filler Metals
Categories
Description Brazing Alloy, Process Brazing, Alloy Type Low-Fuming Bronze, Silver Content 0 Percent, AWS Classification RBCuZn-C, Overall Diameter 1/8 in, Overall Length 36 in, Alloy Form Rod, Finish/Coating Bare, Solidus 1,590 Degrees F, Liquidus 1,630 Degrees F, Capacity Shingles 1,750 Degrees F, Compatible Chuck Size 1,670 Degrees F, Series RBCuZn-C, Container Size 3 lb, Tensile Strength 71 ksi, Yield Strength 64 ksi
graingerSKU: 6ETP3, mscSKU: , zoro_no: G3538096, mongo_id: 65bbea0a22d7a989a998f588

Web Price

$132.49 / each

Qty

Product Details

Alloy Composition 56% to 60% Copper, 0.8% to 1.1% Tin, 0.25% to 1.2% Iron, 0.01% to 0.5% Manganese, 0.05% Lead, 0.04% to 0.15% Silicon, 0.01% Aluminum, 0.5% Other, Balance Zinc

Alloy Form Rod

Alloy Type Low-Fuming Bronze

Application Used For Cast Iron, Malleable Steel, Galvanized Steels, Brass and Copper

AWS Classification RBCuZn-C

Brazing Range (F) 1595 to 1630

Brazing Temperature Range 1,670 Degrees F to 1,750 Degrees F

Capacity Shingles 1,750 Degrees F

Compatible Chuck Size 1,670 Degrees F

Container Box

Container Size 3 lb

Container Type Box

Country of Origin (subject to change) Multiple

Dia. (In.) 1/8 in

Diameter 1/8 in

Elongation 25%

Finish/Coating Bare

Flux Application Flux Required for Cast Iron to Cast Iron, Flux Required for Cast Iron to Copper, Flux Required for Cast Iron to Stainless Steel, Flux Required for Cast Iron to Steel, Flux Required for Copper to Stainless Steel, Flux Required for Copper to Steel, Flux Required for Stainless Steel to Steel, Flux Required for Steel to Steel

For Joining Cast Iron to Cast Iron, Cast Iron to Copper, Cast Iron to Stainless Steel, Cast Iron to Steel, Copper to Stainless Steel, Copper to Steel, Stainless Steel to Steel

For Metal Type Cast Iron to Cast Iron, Cast Iron to Copper, Cast Iron to Stainless Steel, Cast Iron to Steel, Copper to Stainless Steel, Copper to Steel, Stainless Steel to Steel, Steel to Steel

Joining Applications Cast Iron to Cast Iron, Cast Iron to Copper, Cast Iron to Stainless Steel, Cast Iron to Steel, Copper to Stainless Steel, Copper to Steel, Stainless Steel to Steel, Steel to Steel

Length (In.) 36 in

Liquidus 1,630 Degrees F

Material Copper

Maximum Brazing Temperature 1,750 Degrees F

Minimum Brazing Temperature 1,670 Degrees F

Minimum Soldering Temperature 1,670 Degrees F

Overall Diameter 1/8 in

Overall Length 36 in

pack-container 1/pk

Package Quantity 1

Process Brazing

Series RBCuZn-C
