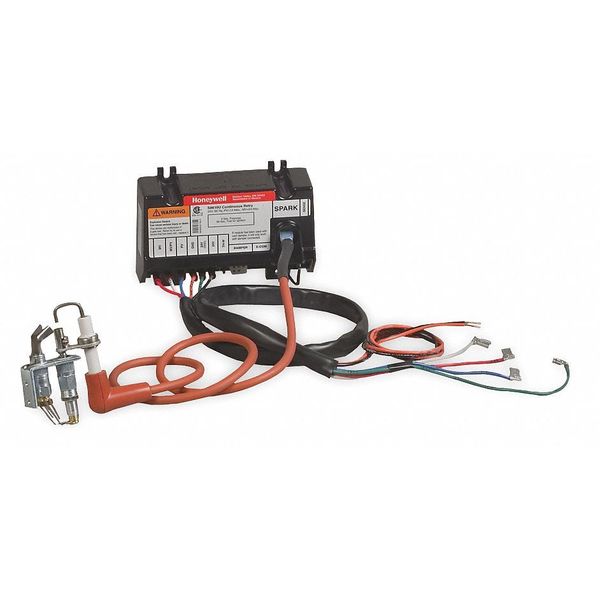

Conversion Kit, Inlet/Outlet 1/2 x 3/4 In

SKU
Brand Honeywell Home
Categories
Description Standing Pilot Module, Product Type Standing Pilot Module, Maximum Operating Temperature 165 Degrees F, Minimum Operating Temperature -40 Degrees F, Lock Out Time 15 sec, Pre-Purge Time 30 sec, Number of Retries 3, Main Valve Current Output 24 A, Flame Sensor Current Output 1 uA, Ignition Cycle Time 90 seconds (Spark), Automatic Reset Time 6 min, Compatible with Brand Honeywell, OEM Replacement Part Number Y8610U3003, Control Voltage 24V AC, Thermostat Anticipator Setting Thermostat Anticipator
graingerSKU: 2RNY2, mscSKU: , zoro_no: G1498795, mongo_id: 65bbe7883aaddbd5a909ee79

Web Price

$576.24 / each

Qty

Product Details

Amps AC 0.7 A

Automatic Reset Time 6 min

Bracket No

BtuH Capacity 270,000

Compatible with Brand Honeywell

Control Voltage 24V AC

Control Volts 24 V

Country of Origin (subject to change) Mexico

Depth (In.) 2 5/8 in

Electrical Connections 30 in Wiring Harness With Stud Terminal And 1/4 in Quick-Connect Terminal

Electrical Ratings 24V AC

Flame Sensor Current Output 1 uA

For Fuel Type LP, Natural Gas

For Use With Residential, Commercial Heating Equipment

Frequency 60 Hz

Gas Type LP/NG

Height (In.) 3 15/16 in

Ignition Cycle Time 90 seconds (Spark)

Includes Gas Valve, Ignition Cable, Ignition Module, Pilot Burner Hardware, Wiring Harness

Inlet/Outlet (In.) 1/2 x 3/4

Input Voltage 24V AC

Lock Out Time 15 sec

Lockout Time (Sec.) 15 or 90

Main Valve Current Output 24 A

Maximum Operating Temperature 165 Degrees F

Method of Opening Standard

Minimum Operating Temperature -40 Degrees F

Number of Retries 3

OEM Replacement Part Number Y8610U3003

Operation Description Convert Conventional Standing Pilot Systems To Intermittent Pilot Systems, After Trial For Ignition, Pilot Gas Shuts Off For 5 Minutes, Then Another Trial For Pilot Ignition Takes Place

Package Quantity 1

Pre-Purge Time 30 sec

Prepurge Time (Sec.) 0 or 30 sec

Pressure Setting Range (In. WC) 3.5

Product Type Standing Pilot Module

Replacement Type Universal

Retries Continuous

Thermostat Anticipator Setting Thermostat Anticipator

Type Intermittent Pilot

Voltage 24

Width (In.) 3 7/8 in
