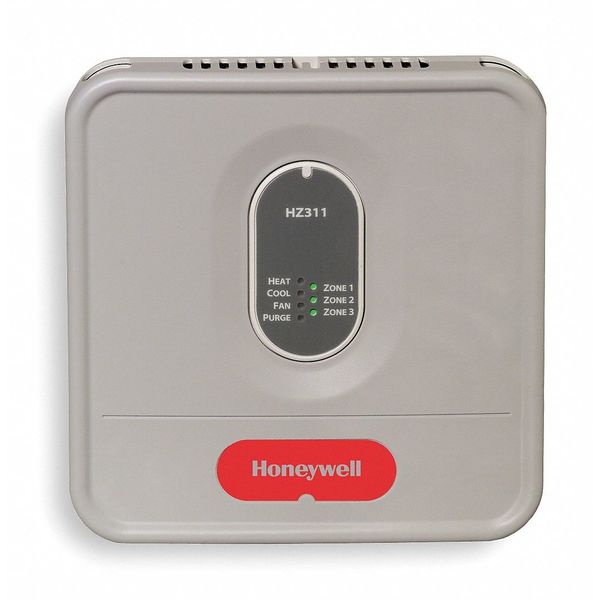

Zone Panel, 3 Zone, Output Amps 6.25 VA

SKU
Brand Honeywell Home
Categories
Description Zone Panel, Overall Height 8 1/8 in, Overall Width 8 in, Requires Thermostat Type 1 Cool, 1 Heat, Terminal Designations C, G, M1, M4, M6, R, RC, W, Y, Number of Zones 3, Housing Color Gray, Product Type Zone Panel, Nameplate Voltage 24V AC, Includes AT140A1042 40 VA Transformer, AT175A1008 75 VA Transformer, DATS C7735A1000 Discharge Air Temperature Sensor (DATS), Slave Damper Control Relay, Minimum Ambient Temperature -40 Degrees F, Maximum Ambient Temperature 165 Degrees F

Web Price

$241.24 / each

Qty

Product Details

Ambient Temp. Range -20 to 150

Application Controls Air Flow In Heating And Cooling Systems

Color Gray

Connection Push-Button Terminals

Connection Type Push-Button Terminals

Country of Origin (subject to change) Mexico

Depth (In.) 2 in

For Use With True Zone Systems

Full Load Current 6.25 A

Height (In.) 8 1/8 in

Housing Color Gray

Includes AT140A1042 40 VA Transformer, AT175A1008 75 VA Transformer, DATS C7735A1000 Discharge Air Temperature Sensor (DATS), Slave Damper Control Relay

Maximum Ambient Temperature 165 Degrees F

Minimum Ambient Temperature -40 Degrees F

Nameplate Voltage 24V AC

Number of Zones 3

Output Amps 6.25 VA

Overall Depth 1 7/8 in

Overall Dimensions H x W 8 1/8 in x 8 in

Overall Height 8 1/8 in

Overall Width 8 in

Package Quantity 1

Power Method 24 Vac

Product Type Zone Panel
