Home / 1NC/1NO Safety Interlock Switch Nema 1, 12, 13 IP 66

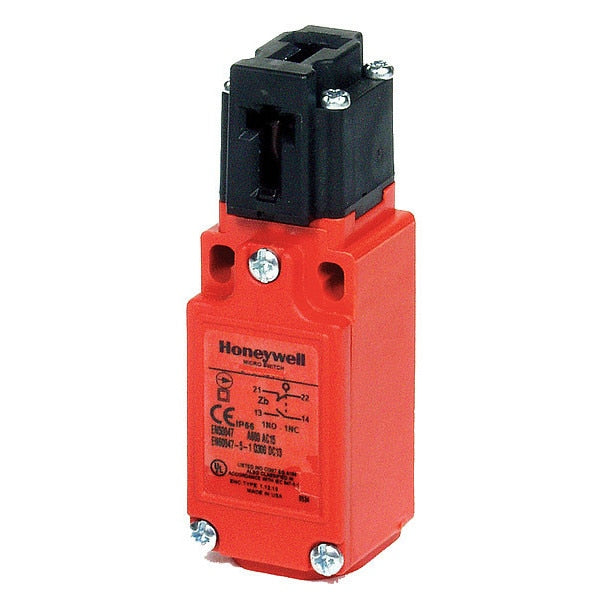

1NC/1NO Safety Interlock Switch Nema 1, 12, 13 IP 66

SKU
Brand Honeywell Micro Switch
Categories
Description Safety Interlock Switch, 90 Degrees or Straight Key Actuated, Front and Top Opening, Rotating Head, Contact Form 1NO/1NC, Break Before Make, Direct Opening, Slow Action, Connection Type 1/2 in NPT Conduit, AC Contact Rating 100mA to 10A @ 600V, Series GKE, DC Contact Rating 100mA to 10A @ 250V, Height 3.61 in, Width 1.2 in, Depth 1.2 in, NEMA Rating 1, 12, 13, IP Rating 66, Operating Temp. Range -13 Degrees to 185 Degrees F, Contact Material Silver, Conduit Size 1/2 in NPT
graingerSKU: null, mscSKU: null, zoro_no: G4323173, mongo_id: 65bbe67b3aaddbd5a90315a3

Web Price

$117.24 / each

Qty

Product Details

AC Contact Rating 100mA to 10A @ 600V

Actuator Contacts 1NC 1NO BBM, Slow Action

Actuator Style Key

Body Material Thermoplastic

Conduit Size 1/2 in NPT

Connection 1/2 in. NPT

Connection Type 1/2 in NPT Conduit

Contact Form 1NO/1NC, Break Before Make, Direct Opening, Slow Action

Contact Material Silver

Contact Rating 1.2A

Country of Origin (subject to change) China

DC Contact Rating 100mA to 10A @ 250V

Depth 1.2 in

Description/Special Features 0.5 lb Extraction Force, Enclosure Double Insulated to IEC 536 Class II, Mechanical Life 1,000,000 Operations, Order Key Actuator Separately, Shock 50G per IEC 68-2-27, Vibration 10G per 68-2-6

Enclosure Rating IP66/IP67

Head Material Thermoplastic

Height 3.61 in

IP Rating 66

NEMA Rating 1, 12, 13

Operating Force 5 lb

Operating Temp. Range -13 Degrees to 185 Degrees F

Operating Temperature -13 to 185 Degree F (-25 to 85 Degree C)

Package Quantity 1

Series GKE

Standards CCC, CE, cULus, SIL 3 Capable

Style 90 Degrees or Straight Key Actuated, Front and Top Opening, Rotating Head
