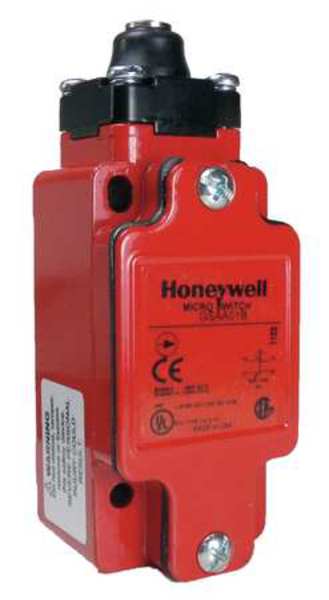

Home / 1NC/1NO Safety Interlock Switch Nema 1, 4, 12, 13

1NC/1NO Safety Interlock Switch Nema 1, 4, 12, 13

SKU
Brand Honeywell Micro Switch
Categories
Description Safety Interlock Switch, 0.3 in dia Top Pin Plunger, Contact Form 1NO/1NC, Direct Opening, Single Pole, Snap Action, Actuator Length 1.48 in, Connection Type 1/2 in NPT Conduit, AC Contact Rating 100mA to 10A @ 600V, Series GSA, DC Contact Rating 100mA to 10A @ 250V, Height 3.23 in, Width 1.65 in, Depth 1.65 in, NEMA Rating 1, 12, 13, 4, IP Rating 67, Operating Temp. Range -13 Degrees to 185 Degrees F, Contact Material Silver, Conduit Size 1/2 in NPT, Body Material Zinc Die-Cast
graingerSKU: 11X226, mscSKU: , zoro_no: G4083597, mongo_id: 65bbe74d3aaddbd5a90874c0

Web Price

$194.99 / each

Product Details

AC Contact Rating 100mA to 10A @ 600V

Actuator Length 1.48 in

Body Material Zinc Die Cast

Conduit Size 1/2 in NPT

Connection Type 1/2 in NPT Conduit

Contact Form 1NO/1NC, Direct Opening, Single Pole, Snap Action

Contact Material Silver

Country of Origin (subject to change) United States

DC Contact Rating 100mA to 10A @ 250V

Depth 1.65 in

Description/Special Features EN50041 Body Type, Non Plug-In, Shock 50G per IEC 68-2-27, Vibration 10G per IEC 68-2-26, Mechanical Life 15 Million Operations, FP, OP, OT, PT All to EN50041, Head and Cover Fixed with TORX(R) Socket Head Screws (Driver Supplied)

Differential Travel 11mm

Height 3.23 in

IP Rating 67

Movement Lateral

NEMA Rating 1, 12, 13, 4

Number of Poles 1

Operating Force 3.6 in-lb Max

Operating Temp. Range -13 Degrees to 185 Degrees F

Package Quantity 1

Positive Travel 56mm

Pre-travel 20mm

Series GSA
