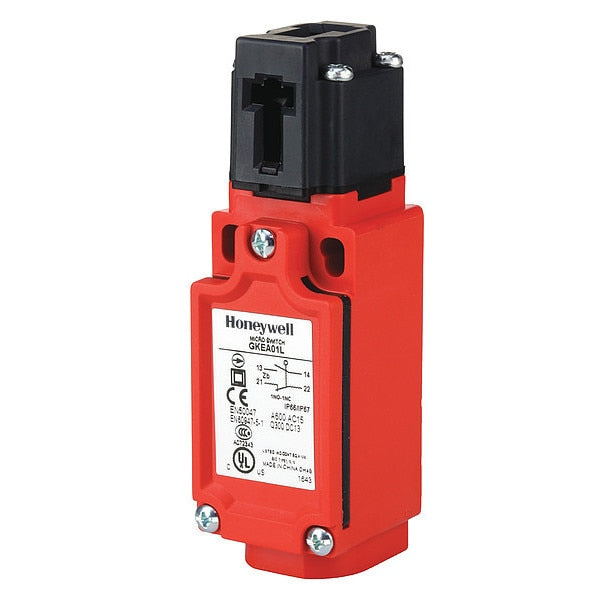

2NC Safety Interlock Switch Nema 1, 12, 13 IP 66

SKU
Brand Honeywell Micro Switch
Categories
Description Safety Interlock Switch, 90 Degrees or Straight Key Actuated, Front and Top Opening, Rotating Head, Contact Form 2NC, Direct Opening, Slow Action, Connection Type 1/2 in NPT Conduit, AC Contact Rating 100mA to 10A @ 600V, Series GKE, DC Contact Rating 100mA to 10A @ 250V, Height 3.61 in, Width 1.2 in, Depth 1.2 in, NEMA Rating 1, 12, 13, IP Rating 66, Operating Temp. Range -13 Degrees to 185 Degrees F, Contact Material Silver, Conduit Size 1/2 in NPT, Body Material Thermoplastic
graingerSKU: 11T871, mscSKU: , zoro_no: G4074612, mongo_id: 65bbe8d822d7a989a991aef9

Web Price

$122.74 / each

Qty

Product Details

AC Contact Rating 100mA to 10A @ 600V

Body Material Thermoplastic

Conduit Size 1/2 in NPT

Connection Type 1/2 in NPT Conduit

Contact Form 2NC

Contact Material Silver

Country of Origin (subject to change) China

DC Contact Rating 100mA to 10A @ 250V

Depth 1.2 in

Description/Special Features 0.5 lb Extraction Force, Enclosure Double Insulated to IEC 536 Class II, Mechanical Life 1,000,000 Operations, Shock 50G per IEC 68-2-27, Vibration 10G per 68-2-6

Head Material Thermoplastic

Height 3.61 in

IP Rating 66

NEMA Rating 1, 12, 13

Operating Force 5 lb

Operating Temp. Range -13 Degrees to 185 Degrees F

Package Quantity 1

Series GKE

Standards CCC, CE, cULus, SIL 3 Capable

Style 90 Degrees or Straight Key Actuated, Front and Top Opening, Rotating Head

Width 1.2 in
