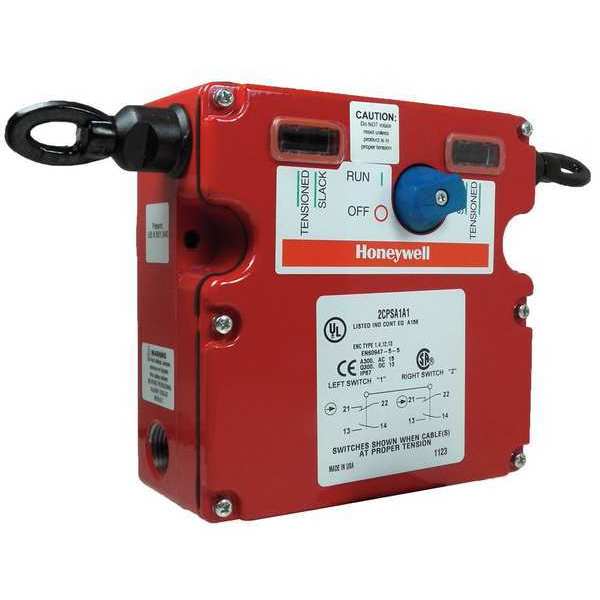

Name: Cable Pull Safety Switch Dual Head 2NO/2NC 1/2NPT
Brand: Honeywell Micro Switch
SKU: G4089242
Price: 1013.74 USD
Availability: OutOfStock

Home / Cable Pull Safety Switch Dual Head 2NO/2NC 1/2NPT

Cable Pull Safety Switch Dual Head 2NO/2NC 1/2NPT

SKU
Brand Honeywell Micro Switch
Categories
Description Emergency Cable Pull Switch, Switch Function Maintained, Mounting Style Double End, AC Contact Rating 0.05A @ 250V AC, Contact Form 2NC/2NO, Gold-Plated, Rotary Knob Reset, Max. Cable Span 500 ft, Operating Force 3 to 5 lb, NEMA Rating 1, 12, 13, 4, Indicator None, Cable Connection Location Left and Right, Thermal Amperage 10 A, Length 12.75 in, Width 12.75 in, Depth 3.66 in, Switching Ability Dual Cable, DC Contact Rating 2.5A, Min. Current 10uA to 50mA, Case Material Zinc Die Cast

Web Price

$1,013.74 / each

Product Details

AC Contact Rating 0.05A @ 250V AC

Cable Connection Location Left and Right

Case Material Zinc Die Cast

Contact Form 2NC/2NO, Gold-Plated

Country of Origin (subject to change) United States

DC Contact Rating 2.5A

Depth 3.66 in

For Use With Microswitch CPS Accessories

Indicator None

IP Rating 67

Length 12.75 in

Length (Straight Wireway) 12.75 in

Max. Cable Span 500 ft

Min. Current 10uA to 50mA

Mounting Style Double End

NEMA Rating 1, 12, 13, 4

Operating Force 3 to 5 lb

Package Quantity 1

Reset Rotary Knob

Standards UL Listed, CSA Certified, CE Marked, SIL 3 Capable, Low Voltage Directive 73/23/EEC, as Amended By Directive 93/68/EEC, Machinery Directive 98/37/EEC Only as the Directives Relate to the Components Being Used in a Safety Function, EN60947-1, EN-60947-5-1, EN60947-5-5

Switch Function Maintained

Switching Ability Dual Cable

Thermal Amperage 10 A

Width 12.75 in

Wiring Entry 1/2 in NPT
