Home / Cable Pull Switch, 10A, Sngl, 1NC/1NO, 24VDC

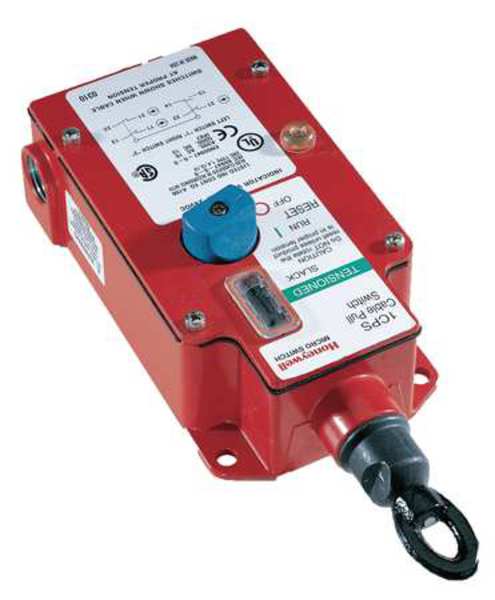

Cable Pull Switch, 10A, Sngl, 1NC/1NO, 24VDC

SKU
Brand Honeywell Micro Switch
Categories
Description Emergency Cable Pull Switch, Switch Function Maintained, Mounting Style Single End, AC Contact Rating 10A @ 600V AC, Contact Form 1NC/1NO, Silver, Rotary Knob Reset, Max. Cable Span 250 ft, Operating Force 3 to 5 lb, NEMA Rating 1, 12, 13, 4, Indicator 24V DC Red LED, Cable Connection Location Left or Right, Thermal Amperage 10 A, Length 10.62 in, Width 3.9 in, Depth 2.57 in, Switching Ability Single Cable, DC Contact Rating 2.5A @ 24V DC, Min. Current 50mA to 10A, Case Material Zinc Die Cast

Web Price

$633.74 / each

Qty

Product Details

AC Contact Rating 10A @ 600V AC

Cable Connection Location Left or Right

Case Material Zinc Die Cast

Contact Form 1NC/1NO, Silver

Country of Origin (subject to change) United States

DC Contact Rating 2.5A @ 24V DC

Depth 2.57 in

For Use With Microswitch CPS Accessories

Indicator 24V DC Red LED

IP Rating 67

Length 10.62 in

Length (Straight Wireway) 10.62 in

Max. Cable Span 250 ft

Min. Current 50mA to 10A

Mounting Style Single End

NEMA Rating 1, 12, 13, 4

Operating Force 3 to 5 lb

Package Quantity 1

Reset Rotary Knob

Standards UL Listed, CSA Certified, CE Marked, SIL 3 Capable, Low Voltage Directive 73/23/EEC, as Amended By Directive 93/68/EEC, Machinery Directive 98/37/EEC Only as the Directives Relate to the Components Being Used in a Safety Function, EN60947-1, EN-60947-5-1, EN60947-5-5

Switch Function Maintained

Switching Ability Single Cable

Thermal Amperage 10 A

Width 3.9 in

Wiring Entry 1/2 in NPT
