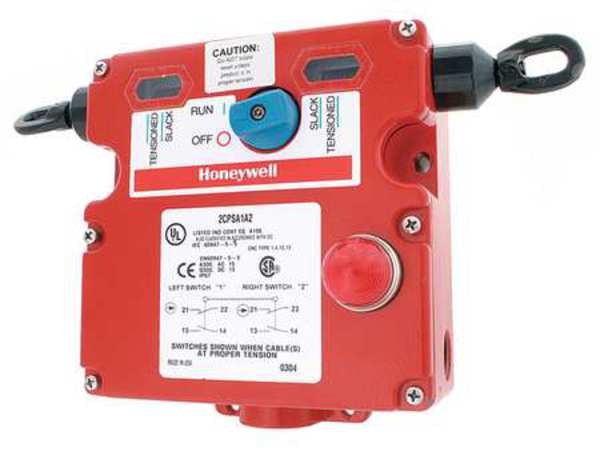

Cable Pull Switch, Double, 2NC/2NO, 120VAC

SKU
Brand Honeywell Micro Switch
Categories
Description Emergency Cable Pull Switch, Switch Function Maintained, Mounting Style Double End, AC Contact Rating 0.05A @ 250V AC, Contact Form 2NC/2NO, Gold-Plated, Rotary Knob Reset, Max. Cable Span 250 ft, Operating Force 3 to 5 lb, NEMA Rating 1, 12, 13, 4, Indicator 120V AC Red Multi-Cluster LED, Cable Connection Location Left, Thermal Amperage 10 A, Length 9.63 in, Width 9.63 in, Depth 3.66 in, Switching Ability Single Cable, DC Contact Rating 2.5A @ 24V DC, Min. Current 10uA to 50mA

Web Price

$2,507.49 / each

Product Details

AC Contact Rating 0.05A @ 250V AC

Cable Connection Location Left

Case Material Zinc Die Cast

Contact Form 2NC/2NO, Gold-Plated

Country of Origin (subject to change) United States

DC Contact Rating 2.5A @ 24V DC

Depth 3.66 in

For Use With Microswitch CPS Accessories

Indicator 120V AC Red Multi-Cluster LED

IP Rating 67

Length 9.63 in

Length (Straight Wireway) 9.63 in

Max. Cable Span 250 ft

Min. Current 10uA to 50mA

Mounting Style Double End

NEMA Rating 1, 12, 13, 4

Operating Force 3 to 5 lb

Package Quantity 1

Reset Rotary Knob

Standards UL Listed, CSA Certified, CE Marked, SIL 3 Capable, Low Voltage Directive 73/23/EEC, as Amended By Directive 93/68/EEC, Machinery Directive 98/37/EEC Only as the Directives Relate to the Components Being Used in a Safety Function, EN60947-1, EN-60947-5-1, EN60947-5-5

Switch Function Maintained

Switching Ability Single Cable

Thermal Amperage 10 A

Width 9.63 in

Wiring Entry 1/2 in NPT
