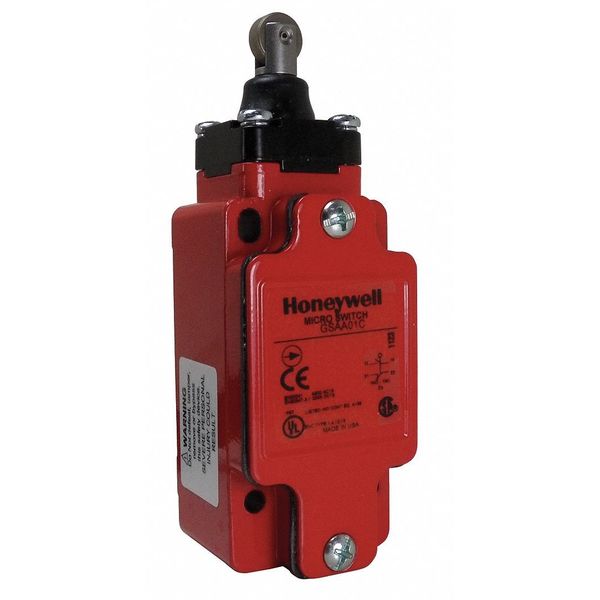

Home / Safety Interlock Switch 2NC/2NO Plunger Nema 1, 4, 12, 13

Safety Interlock Switch 2NC/2NO Plunger Nema 1, 4, 12, 13

SKU
Brand Honeywell Micro Switch
Categories
Description Safety Interlock Switch, Top Roller Plunger, Contact Form 2NO/2NC, Direct Opening, Double Pole, Snap Action, Actuator Length 1.99 in, Connection Type 1/2 in NPT Conduit, AC Contact Rating 100mA to 10A @ 600V, Series GSA, DC Contact Rating 100mA to 10A @ 250V, Height 3.23 in, Width 1.65 in, Depth 1.65 in, NEMA Rating 1, 12, 13, 4, IP Rating 67, Operating Temp. Range -13 Degrees to 185 Degrees F, Contact Material Gold Plated, Conduit Size 1/2 in NPT, Body Material Zinc Die-Cast
graingerSKU: , mscSKU: , zoro_no: G4179831, mongo_id: 65bbe6153aaddbd5a900671f

Web Price

$606.24 / each

Product Details

AC Contact Rating 100mA to 10A @ 600V

Actuator Length 1.99 in

Actuator Style Plunger, Roller

Body Material Zinc Die Cast

Conduit Size 1/2 in NPT

Connection Type 1/2 in NPT Conduit

Contact Form 2NO/2NC, Direct Opening, Double Pole, Snap Action

Contact Material Gold Plated

Country of Origin (subject to change) United States

DC Contact Rating 100mA to 10A @ 250V

Depth 1.65 in

Description/Special Features Steel Roller 0.49 in dia x 0.18 in wide, EN50041 Body Type, Non Plug-In, Shock 50G per IEC 68-2-27, Vibration 10G per IEC 68-2-26, Expected Mechanical Life 15 Million Operations, FP, OP, OT, PT All to EN50041, Head and Cover Fixed with TORX(R) Socket Head Screws (Driver Supplied)

Differential Travel 1.8mm

Height 3.23 in

IP Rating 67

Movement Lateral

NEMA Rating 1, 12, 13, 4

Operating Force 2.1 in-lb Max

Operating Temp. Range -13 Degrees to 185 Degrees F

Package Quantity 1

Positive Travel 18.3mm

Pre-travel 15mm

Series GSA

Standards CE, CSA, Sil 3 Capable, UL
