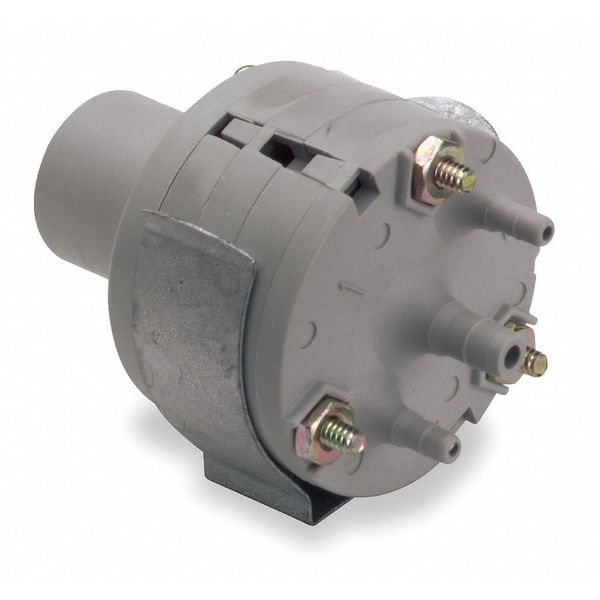

Relay, Pneumatic Reversing Control

SKU
Brand Honeywell
Categories
Description Relay, Pneumatic Reversing Control, Reversing Relay, Control Range 18 psi Main, 3 to 15 psi Pilot, Pressure Range Main 18 psi / Pilot 3 to 15 psi, Max. Safe Air PSI 30 psi, Air Connections Port 1 (Main, Supply) barb for 1/4 (6-mm) OD tubing Ports 2, 3, and 4 (Branch, Output, Pilot, Input and Exhaust ,respectively) barb for 5/32 (4-mm) OD tubing, -, Voltage (AC) -, -, -, Height (In.) -, 1 1/2 Diameter, Width (In.) -, Depth (In.) 2 1/4 in, -, Application -

Web Price

$273.74 / each

Qty

Product Details

Air Connections Port 1 (Main, Supply) barb for 1/4 (6-mm) OD tubing Ports 2, 3, and 4 (Branch, Output, Pilot, Input and Exhaust ,respectively) barb for 5/32 (4-mm) OD tubing

Construction Neoprene Diaphragms, Stainless Steel Valve Seats

Control Range 18 psi Main, 3 to 15 psi Pilot

Control Type Reversing Relay

Country of Origin (subject to change) United States

Depth (In.) 2 1/4 in

Diameter 1 1/2

Includes Mounting Clip, 100 mesh stainless steel, main and branch ports

Max. Safe Air PSI 30 psi

Package Quantity 1

Pressure Range Main 18 psi / Pilot 3 to 15 psi

Type Pneumatic Reversing Control
