Home / 15A Duplex Receptacle 125VAC 5-15R OR

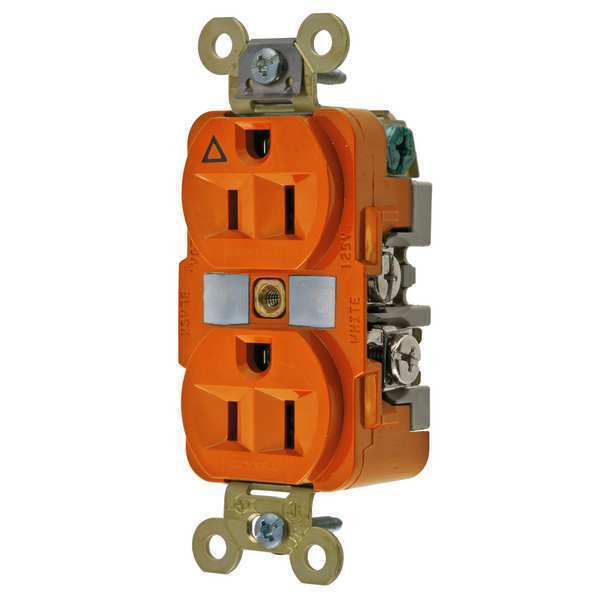

15A Duplex Receptacle 125VAC 5-15R OR

15A Duplex Receptacle 125VAC 5-15R OR

  • Hubbell
  • Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Isolated Ground, Housing Color Orange, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Standards CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186, Voltage Rating 125V AC

    graingerSKU: null, mscSKU: null, zoro_no: G0581332, mongo_id: 65bbe6a93aaddbd5a9045754

Web Price
$41.42 / each
Qty

Product Details

Isolated Ground
Isolated Ground
No
15A
15
15
15 A
Industrial
Stainless Steel
Reinforced PET
UL Listed to UL 498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-6 requirements, Certified to CSA, C22.2, No. 42 File 285.
Orange
Orange
Straight
Nickel-Plated Brass
No
United States
No Cover
Certified for current interrupting at full rated current
15 A
Orange
Withstands 2,000V minimum
Isolated Ground
2.72 in
1.65 in
Finder Groove
Top: UL 94V-2, Base: UL 94V-0, UL 94 V2 or better.
Non-Flanged
Indoor
No
Federal Specification
#8-32 Brass, Multiple Drive (Green)
Isolated Ground
0.5
0.5
1/2 hp
Orange
Nylon
1/2 hp
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
Yes
Isolated Ground
Isolated Ground Receptacle
Standard Resistance
Industrial
Nylon
75 Degrees C
10 AWG
-40 Degrees C
14 AWG
3.28 in
Flush
Steel-Zinc Plated
Flush
Flush
5-15
1
5-15R
5-15R
5-15R
1
2
2 Pole / 3 Wire
3
Maximum continuous 75°C; minimum -40°C (w/o impact)
Orange, Gray, Ivory, Red
Duplex
Standard Duplex
1.05 in
1
Single
Yes
2 Pole, 3-Wire Grounding
.037 (.9) Phosphor Bronze
No
15A, 125V
Heavy Duty Spec Grade
Duplex
Duplex
No
Isolated Ground
NEMA
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Duplex Receptacles
No
No
No
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
#14-#10 AWG copper stranded or solid conductor only
Terminals identified in accordance with UL 498 and CSA
#8-32 Brass /Ni plated for neutral
Nylon
Duplex
V-0, V-2
125VAC
125V AC
125V AC
No
No
Screw Terminals
Screw Terminals
Back, Side
Back and Side
