Home / 20A Duplex MRI Receptacle 125VAC 5-20R RD

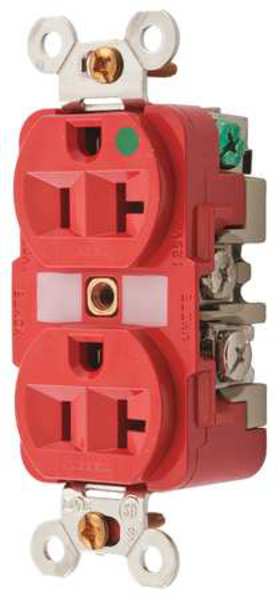

20A Duplex MRI Receptacle 125VAC 5-20R RD

20A Duplex MRI Receptacle 125VAC 5-20R RD

  • Hubbell
  • Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color Red, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Impact Resistant, Standards CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186

    graingerSKU: null, mscSKU: null, zoro_no: G4472246, mongo_id: 65bbe6cb3aaddbd5a9053d7b

Web Price
$55.19 / each

Product Details

Standard Protection
Standard Protection
No
20 A
20
20 A
Heavy Use Hospital Grade
PBT
Hubbell Wiring Device-Kellems
.036. (.9) Nickel plated brass
10
Nickel plated brass
Red
Red
Straight
Back and Side Wired Screw Terminals
Nickel-Plated Brass
No
United States
No Cover
Certified for current interrupting at full rated current
20 A
Red
Withstands 2,000V minimum
Withstands 2,000V minimum
Standard Sized Product
Nylon
2.7 in
1.3 in
UL 94V-2
Non-Flanged
Indoor
No
Hospital Grade Fed. Spec.
.025 in. (.6) Brass
Grounded
1 hp
Red
Nylon
1 hp
Mounting Hardware, Wall Plate or Weatherproof Cover
Yes
IP20
Receptacle
Standard Resistance
Reinforced Thermoplastic Polyester/Nickel Plated brass
1
167 Degrees F
10 AWG
-40 Degrees F
12 AWG
3.3 in
Flush
Bronze
.050 in. (1.3) Nickel plated brass
Flush
Flush
5-20
1
5-20R
5-20R
5-20R
1
2-Pole
2 Pole / 3 Wire
3
Maximum continuous 75°C; minimum -40°C (w/o impact)
Duplex
Standard Duplex
1
Single Phase
Yes
No
Duplex
Impact Resistant
Hospital Grade
No
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
thermoplastic polyester face
MRI Receptacles
No
No
No
#12-#10 AWG stranded or solid copper wire only
Terminals identified in accordance with UL 498 and CSA
Plated brass
Receptacle
V-2
125VAC
125V AC
125 V
No
No
Screw Terminals
Screw Terminals
#12 AWG to #10 AWG
Back, Side
Back and Side
