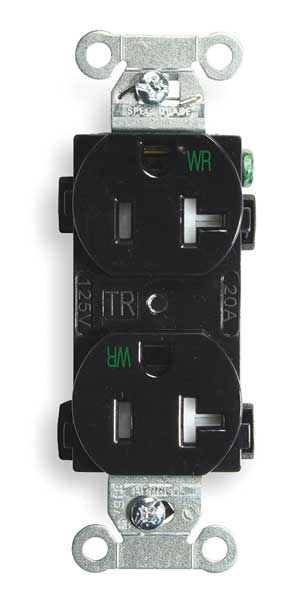

20A Duplex Receptacle 125VAC 5-20R BK

SKU
Brand Hubbell
Categories
Description Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color Black, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Weather Resistant, Standards CSA Certified C22.2, NEMA WD-6, UL 498 File E2186, Voltage Rating 125V AC
graingerSKU: 2HEC9, mscSKU: , zoro_no: G0595454, mongo_id: 65bbe81a9a749db8227751d8

Web Price

$13.67 / each

Qty

Product Details

Additional Electrical Protection Standard Protection

Additional Electrical Protections Standard Protection

AFCI No

Amps 20

Amps - Plugs and Receptacles 20

Amps - Plugs and Receptacles 20 A

Application Environment Commercial

Base Material Nylon

Color Black

Color - Plugs and Receptacles Black

Connection Orientation Straight

Contact Material Brass

Corrosion Resistant No

Cover Type No Cover

Current Rating 20 A

Description Grounding, Smooth

Face Plate Height 2.73 in

Face Plate Width 1.32 in

Flange Type Non-Flanged

GFCI No

Grade Federal Specification

Grounding Grounded

Horsepower 1

Horsepower Rating 1 hp

Housing Color Black

Housing Material Nylon

HP_ 1 hp

Includes Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover

Includes Mounting Hardware Yes

Item - Plugs and Receptacles Receptacle

Key Resistance Properties Tamper & Weather Resistant, Tamper Resistant, Weather Resistant

Market Commercial, Industrial

Material Nylon

Maximum Operating Temperature 75 Degrees C

Maximum Wire Size 10 AWG

Minimum Operating Temperature -40 Degrees C

Minimum Wire Size 12 AWG

Mount Hole Center-to-Center Height 3.28 in

Mount Type Flush

Mounting Type Flush

Mounting Type - Plugs and Receptacles Flush

NEMA Configuration 5-20

NEMA Enclosure Rating 1

NEMA Receptacle Configuration 5-20R

NEMA Receptacle Configuration - Plugs and Receptacles 5-20R

Number of Gangs 1

Number of Poles 2

Number of Poles & Wires 2 Pole / 3 Wire

Number of Wires 3

Outlet Type Duplex

Outlet Type - Plugs and Receptacles Standard Duplex

Phase Single

Polarized Yes

Power Indicator No

Primary Resistance Properties Tamper Resistant - Weather Resistant - 20 A, Weather Resistant - Tamper Resistant - 20 A, Weather Resistant - Weather Resistant - 20 A

Receptacle Type Duplex

Resistance Properties Tamper Resistant, Weather Resistant

Shrouded No

Standards CSA Certified C22.2, NEMA WD-6, UL 498 File E2186

Sub-Category Duplex Receptacles

Surge Protection No

Surge Suppression No

Tamper Resistant Yes

Terminal Accommodation #12-#10 AWG copper stranded or solid conductor only

Type Duplex

UL 94 Flammability Rating V-2

Voltage 125VAC
